Protege Cartridge Mortise
Wireless Lock

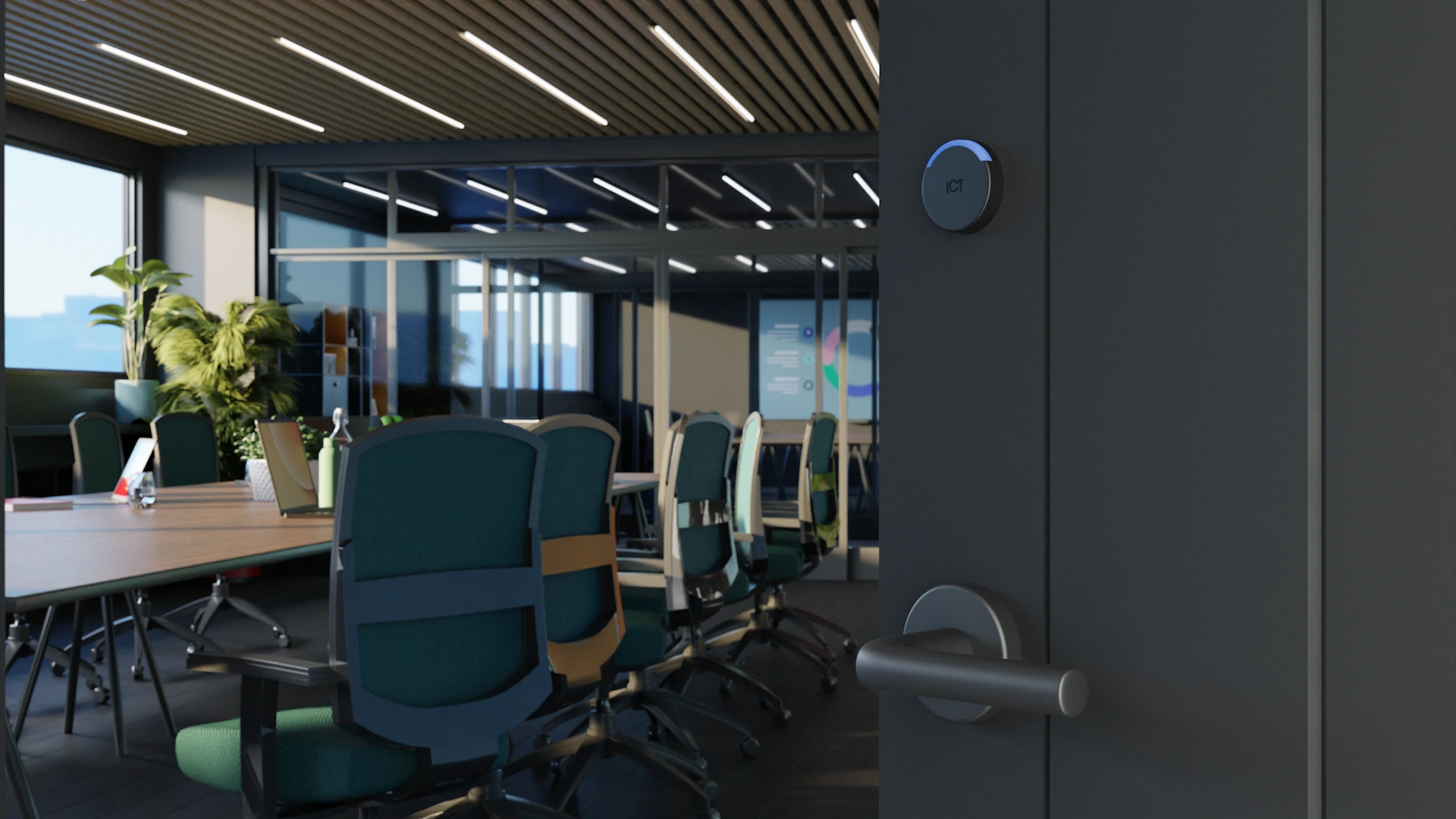

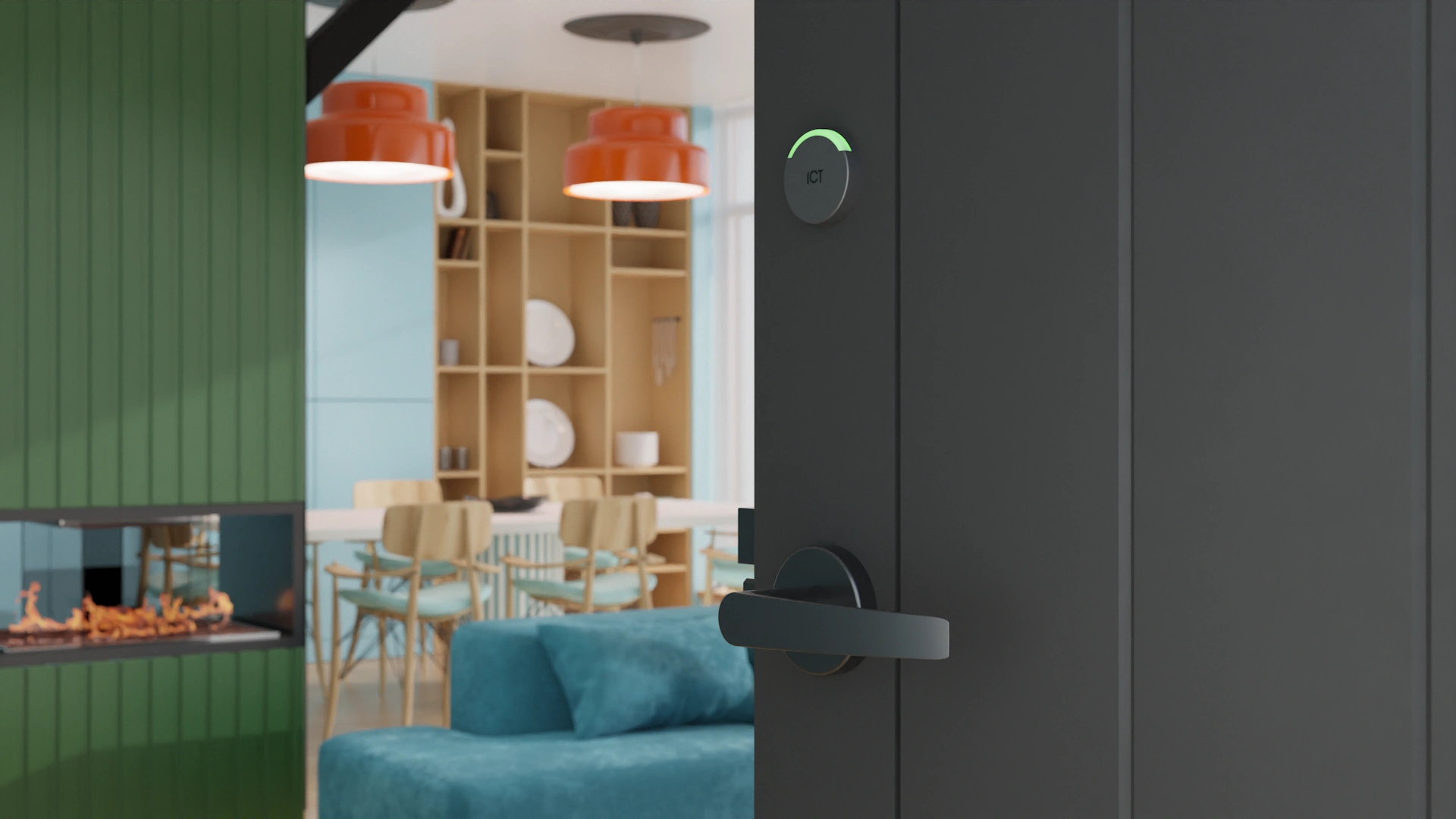

The Protege Cartridge Mortise Wireless Lock combines robust and intelligent locking technology with customizable style to suit the aesthetics of any building. A clever cartridge design with components hidden in the door provides a clean and refined door security solution.

With no cabling necessary you can deploy integrated electronic access control in areas where traditional wired locking solutions may not be possible and online connectivity may be a barrier thanks to the unprecedented flexibility wireless solutions offer, allowing businesses to reduce labor and materials costs significantly.

Key features:

  • Native integrated electronic access control solution
  • Grade 1 electronic mortise lock meets ANSI lock standards

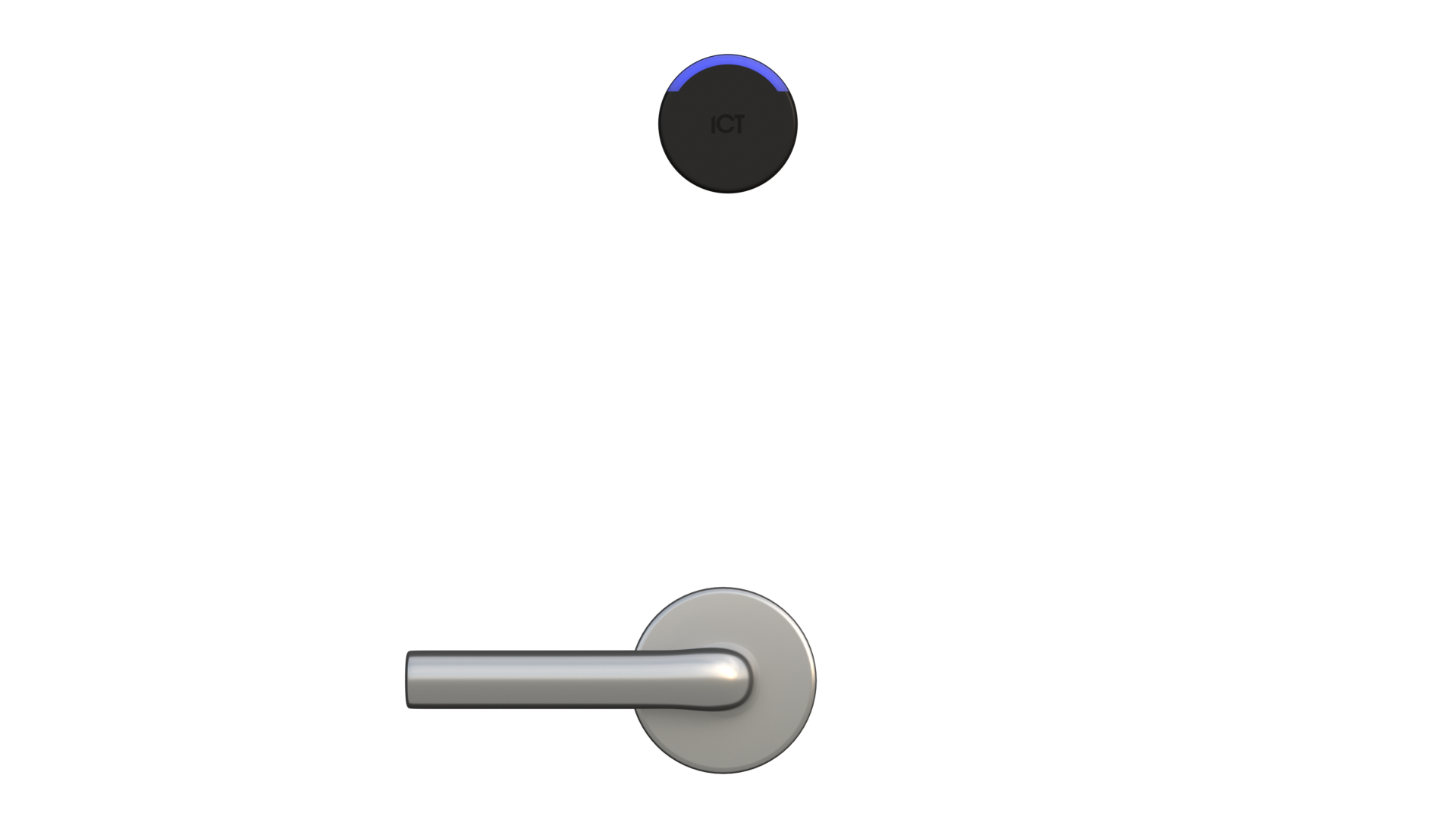

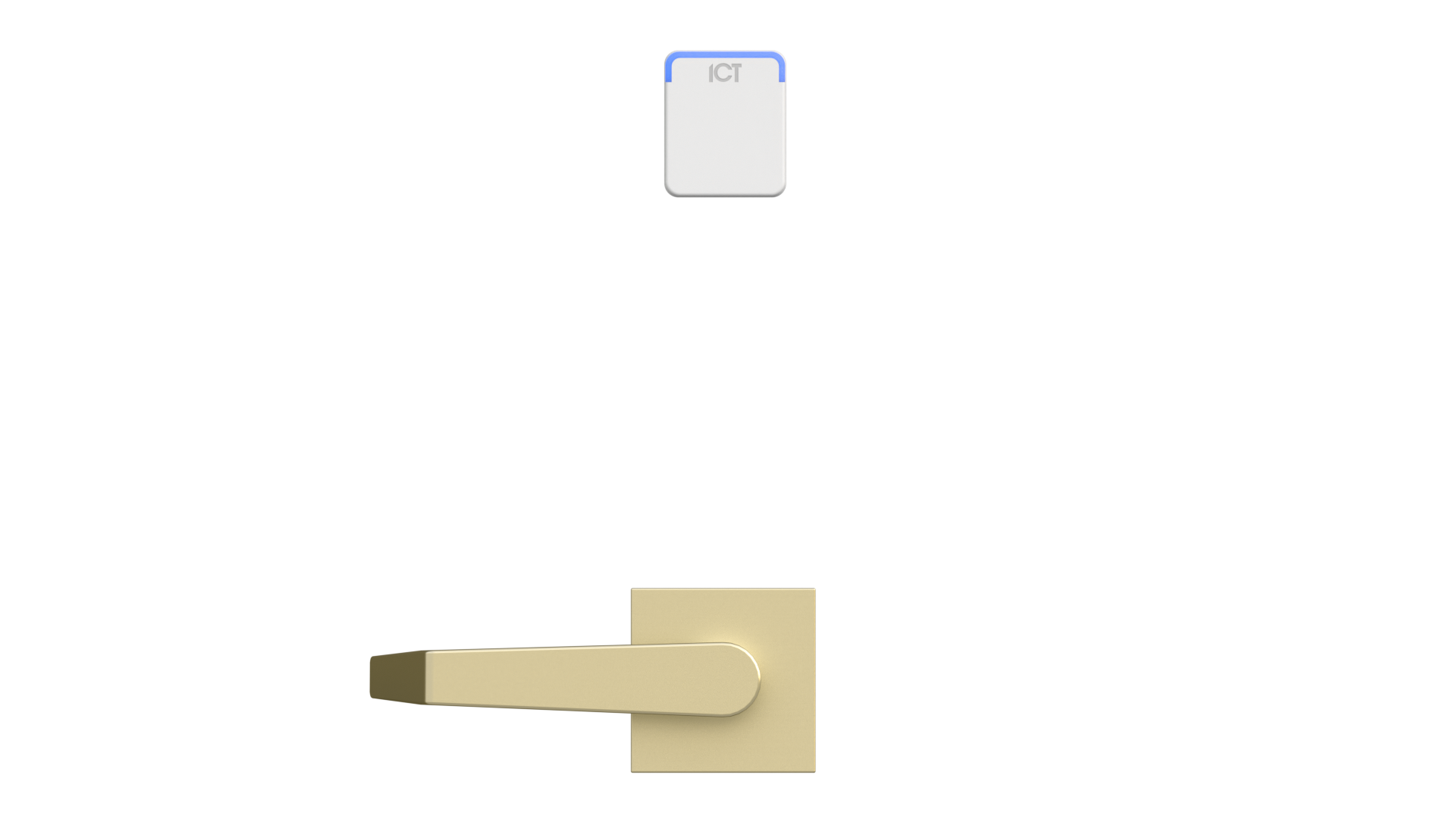

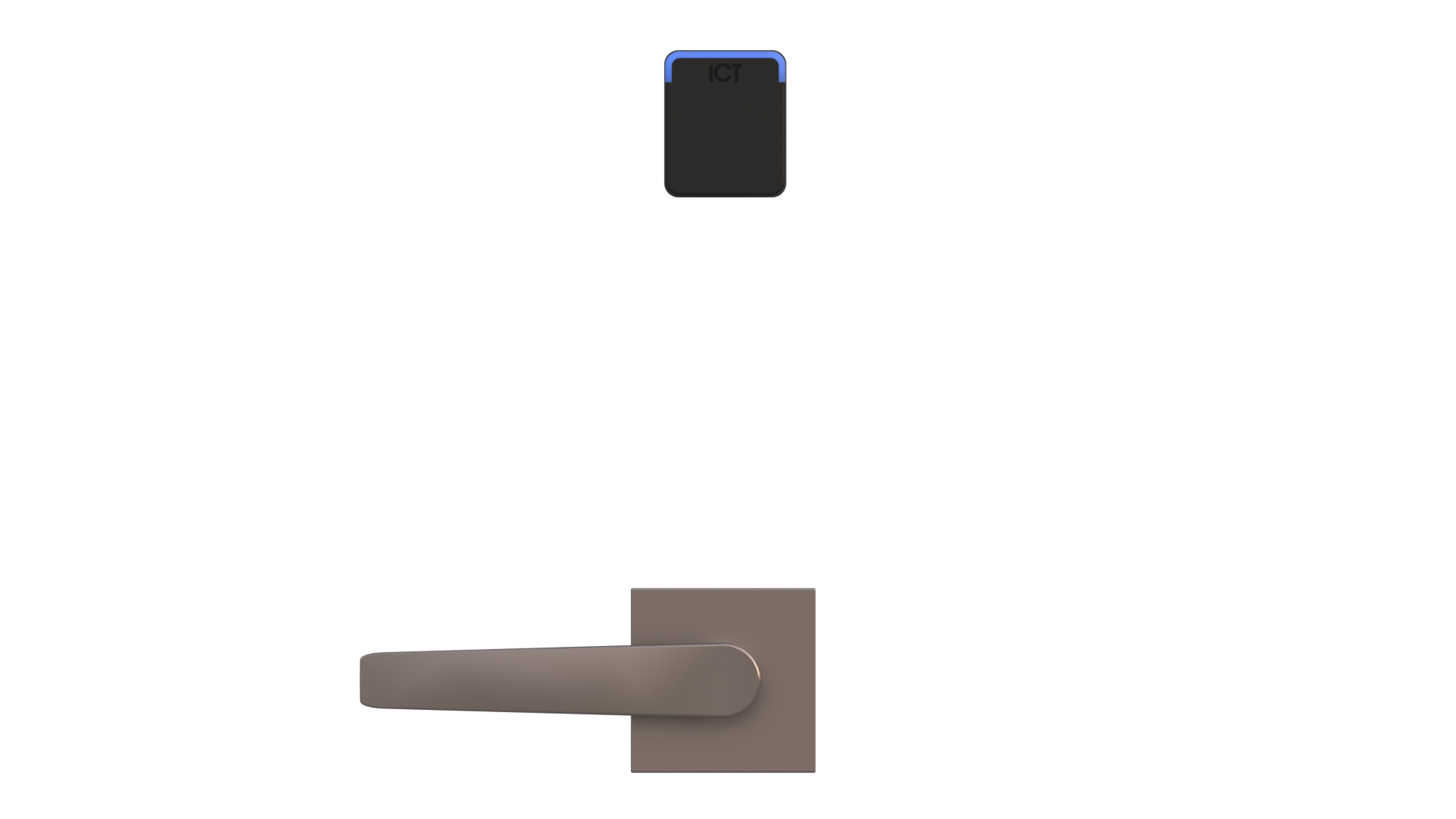

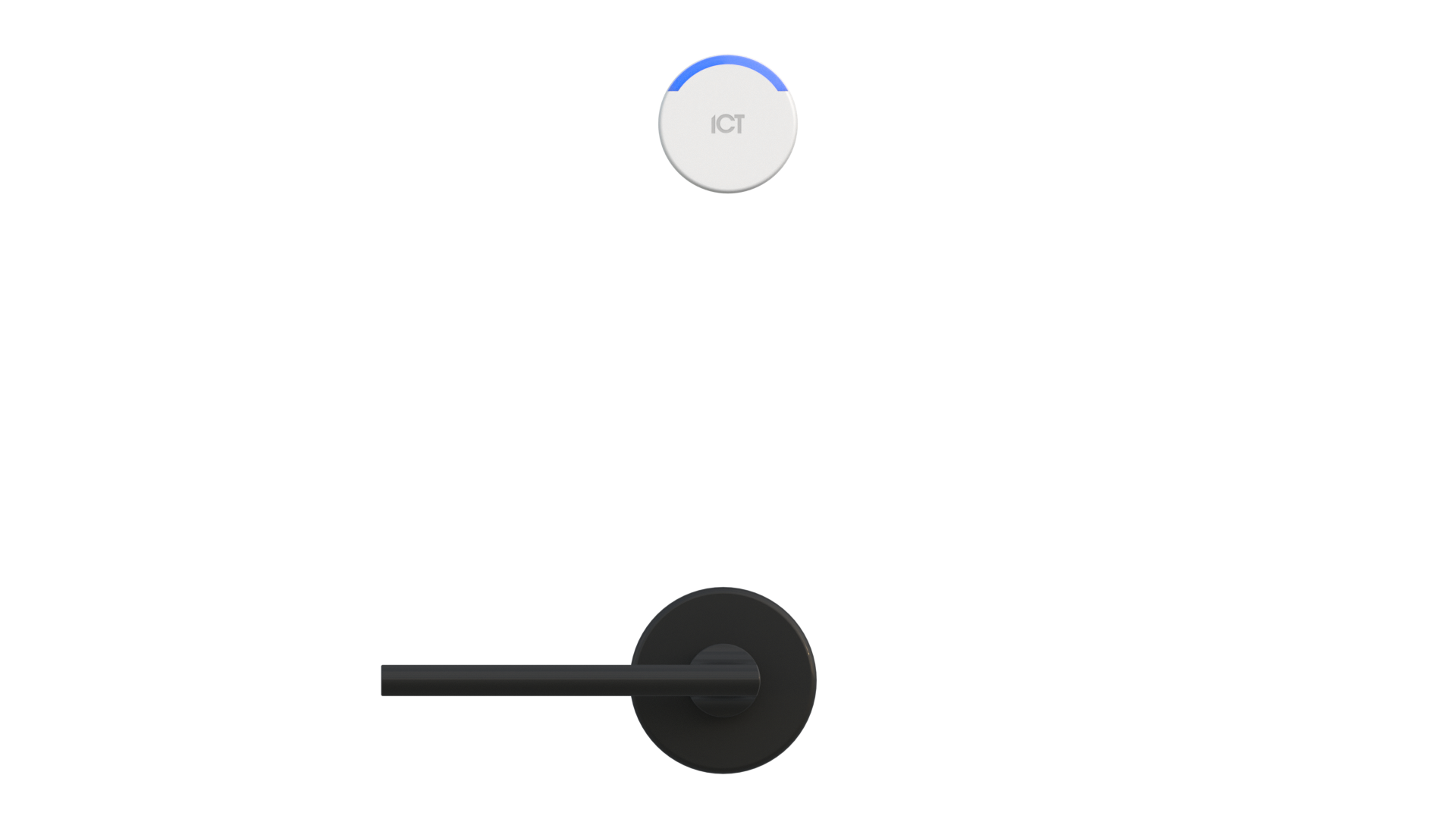

  • Sleek reader design with rectangular or circular cover available in white or black
  • Integrated LED indicator provides read response and status signaling
  • Bluetooth® Wireless Technology
  • MIFARE DESFire credential reading
  • Reader configuration programmable via the Protege Config App
  • Efficient operation provides up to 2 years battery life (40,000 activations)
  • USB-C connection to supply power for emergency opening

Aesthetic Options

A range of aesthetic options means there is a look to suit every installation.

Handle Set Options

Acadia

Acadia

Aspiring

Aspriring

Banff

Banff

Denali

Denali

Glacier

Glacier

Jasper

Jasper

Nightcap

Nightcap

Peak

Peak

Sequioa

Sequioa

Finish Options

Bright Brass

Bright Brass

Satin Brass

Satin Brass

Satin Bronze

Satin Bronze

Oil Rubbed Bronze

Oil Rubbed Bronze

Flat Black

Flat Black

Bright Stainless

Bright Stainless

Satin Stainless

Satin Stainless

Features

ICT wireless locks are a native component of your Protege system. No integration, middleware or third-party interface.

All configuration is performed within your existing Protege setup using standard door programming and utilizes existing records for users, credentials, access levels and other access control features. The solution truly is seamless.

Bluetooth® capability enables you to use your smartphone as your access credential for maximum convenience.

With the Protege Mobile App you can unlock the door using a unique access credential that is entered against your user record in the Protege system and authenticated by a secure cloud based server.

Based on the international standard ISO/IEC 14443 Type A, MIFARE DESFire represents the highest levels of physical credential security.

  • Fully compliant with the international standard ISO/IEC 14443 Type A
  • Multi-application memory to store several services on the same card, allowing for many integration possibilities
  • Fast transaction speed
  • High security and fraud protection

Because offline locks are not actively connected to the network, in many systems they are extremely inconvenient to program. In contrast Protege wireless locks can be configured using the tool you already have in your pocket.

With the Protege Config App, you can simply badge your phone at an update reader to pick up the latest configuration, then send the updates to any lock within Bluetooth® range. The app will automatically update the lock firmware as well, saving you time and money.

The mortise lock meets ANSI Grade 1 lock standards and is rated for over 12 million cycles, boasting the following industry-leading construction:

  • Stainless steel deadbolt
  • Stainless steel anti-friction latchbolt
  • Stainless steel deadlatch
  • Stainless steel armor plate
  • Stainless steel stop works
  • Independent single retractor hub
  • A single cam for all locking functions
  • Four compression springs to ensure smooth controlled operation
  • 12 gauge heavy duty alloy steel casing

The Protege Cartridge Mortise Wireless Lock offers the flexibility to create your own configuration. Simply choose your preferred components from the range of available options to compile your perfect combination.

Specifications

Ordering Information
Order Codes

See the ICT Protege Lock Selector

Power Supply
Battery

Alkaline AA 1.5V (x3)
UL/cUL Energizer MAX Alkaline

Expected Battery Life Up to 2 years (40,000 activation cycles. (Length of battery life not evaluated by UL)
Emergency Power Supply USB-C connection allows power supply for emergency opening
Operating Voltage 3.3 – 5.2V
Operating Current 370mA (Peak, Door Activation)
Average Operating Current 82μA (Standby Mode)
Memory
Event Memory Storage 40,000 log entries
Communications
Frequency 13.56 MHz ISO/IEC 14443 Type A
Card Read Range 20mm (0.79") (Typical)
Tag Read Range 15mm (0.59") (Typical)
Bluetooth® Wireless Technology
Bluetooth® Read Range Proximity mode: up to 0.5m (1.6ft) configurable
Action unlock (shake): up to 5m (16.4ft) configurable
Bluetooth® Electronic Credential Transmission Technology Bluetooth® version 5.2 compliant
Proprietary data exchange protocol. AES-128 encrypted
Credentials can be distinguished by unique site code and card number
Bluetooth® Wireless Device Protege Mobile 1.0.x
Lock Specification
Lock Type Grade 1 mortise lock
Casing 12 gauge heavy duty dichromated alloy steel
Faceplate Stainless steel. Beveled. H x W 203.2 x 31.75mm (8 x 1.25”)
Strike Plate Stainless steel. Non-handed. Curved lip
Latchbolt Stainless steel. Anti-friction. 19mm (0.75”) throw
Deadbolt Stainless steel. 25.4mm (1") throw
Handle Rotation 35 degrees
Door Thickness
  • 44.45 to 50.8mm (1.75-2"): Standard. Nothing additional required
  • 57.15mm (2.25"): Non-standard. Requires purchase of a Thick Door 1 kit per door
  • 63.5mm (2.5”): Non-standard. Requires purchase of a Thick Door Kit 2 per door
  • 69.85 to 76.2mm (2.75-3"): Non-standard. Requires purchase of a Thick Door 3 kit per door
  • Greater than 76.2mm (3"): This is a custom order. Please contact your local sales rep as we will not be able to quote without discussing with our supplier.
Control Hardware Dimensions
Reader Cover Circular (OD x D)  Ø 45 x 12.5mm (Ø 1.77 x 0.49")
 Rectangular (H x W x D)  48 x 40 x 12.5mm (1.89 x 1.57 x 0.74")
Control Cartridge (H x W x D) 95 x 42.8 x 18.9mm (3.74 x 1.69 x 0.49")
Armor Plate (H x W) 150 x 31.7mm (5.9 x 1.25”)
Operating Conditions
Operating Temperature UL/cUL 0° to 49°C (32° to 120°F)
Storage Temperature -10˚ to 85˚C (14˚ to 185˚F)
Humidity 0%-93% non-condensing, indoor use only (relative humidity)
Mean Time Between Failures (MTBF) 520,834 hours (calculated using RDF 2000 (UTE C 80-810) Standard)

* The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Integrated Control Technology is under license. Other trademarks and trade names are those of their respective owners.

Regulatory Notices

ICES-003

This is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

FCC Rules and Regulations CFR 47, Part 15, Class B.

This equipment complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.

Protege wireless lock hardware is designed to adhere to legal and industry guidelines:

  • Americans with Disabilities Act (ADA)
  • International Code Council A117.1 (ICC A117.1)
