IP alarm transmission capability allows communication of alarms from a controller to a monitoring station via cellular network transmission, delivering convenient, cost-effective monitored outbound reporting.

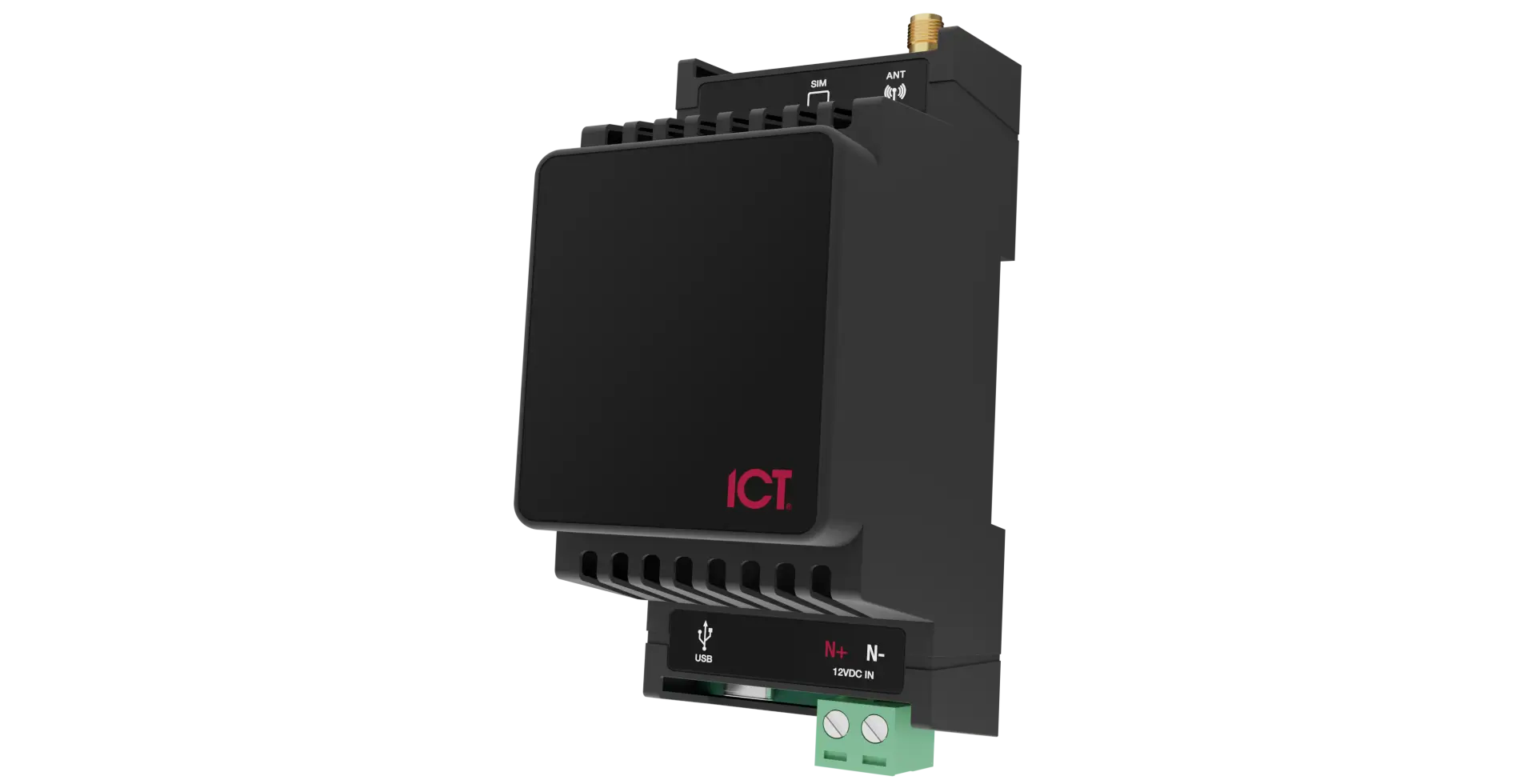

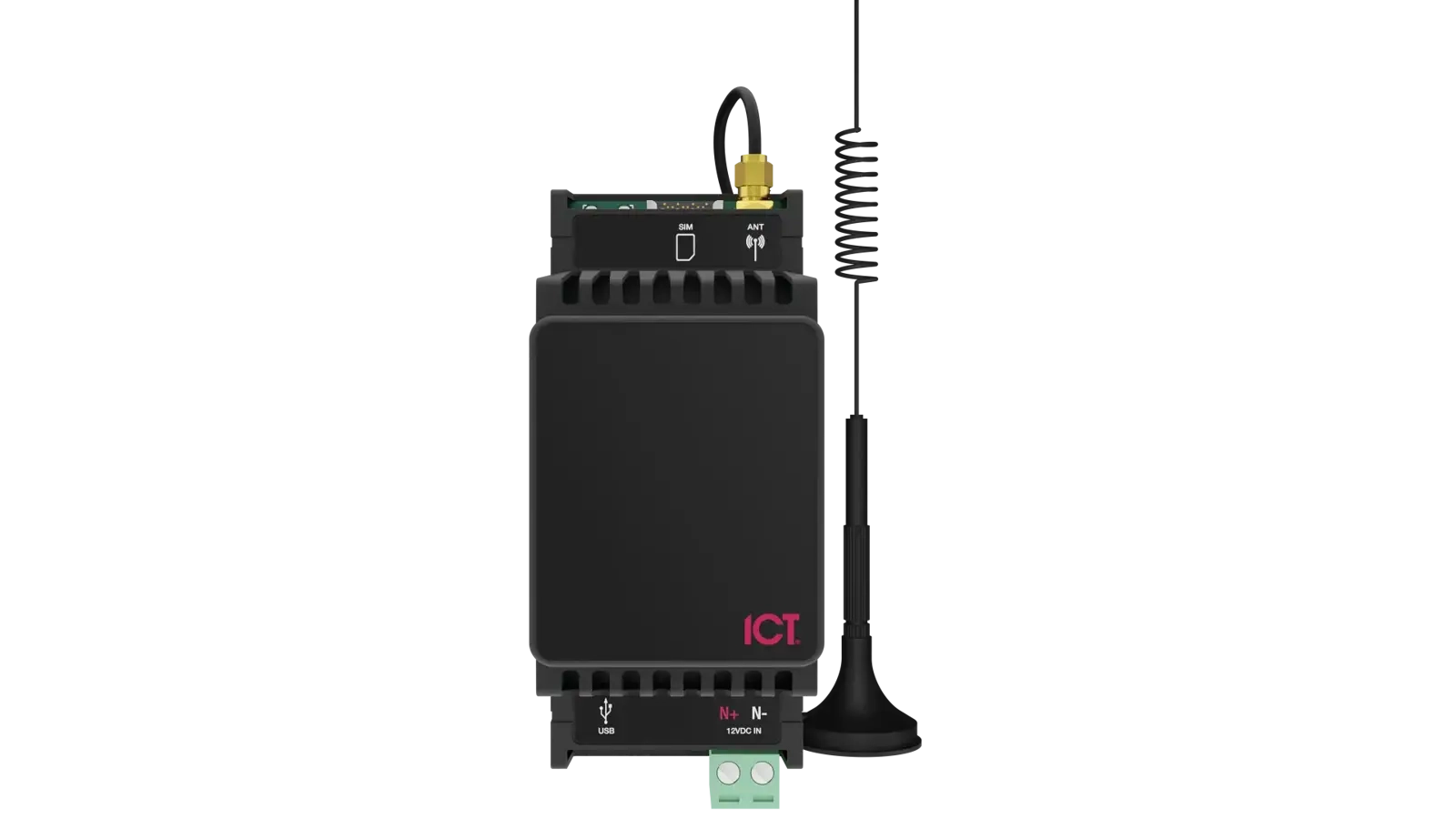

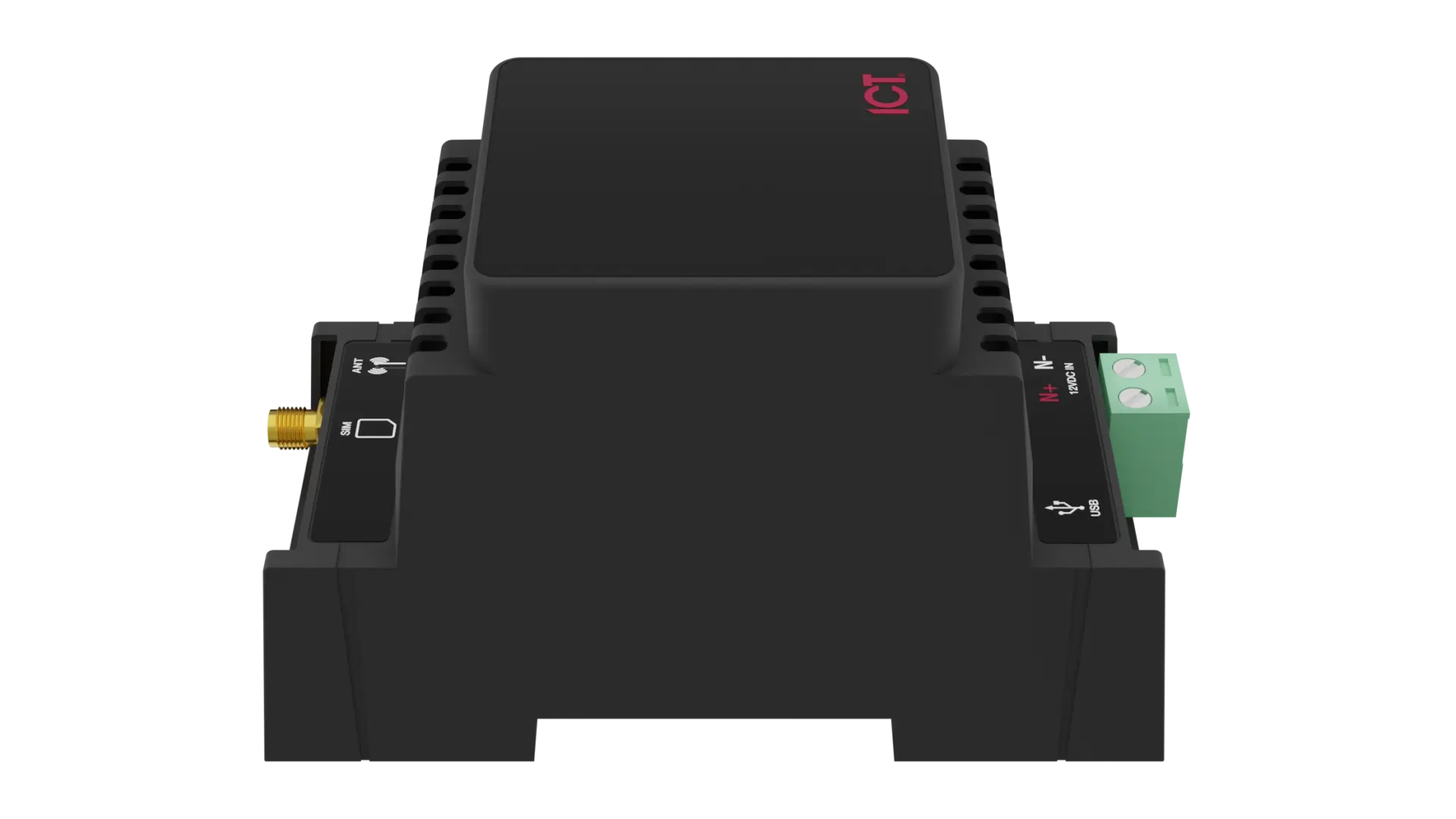

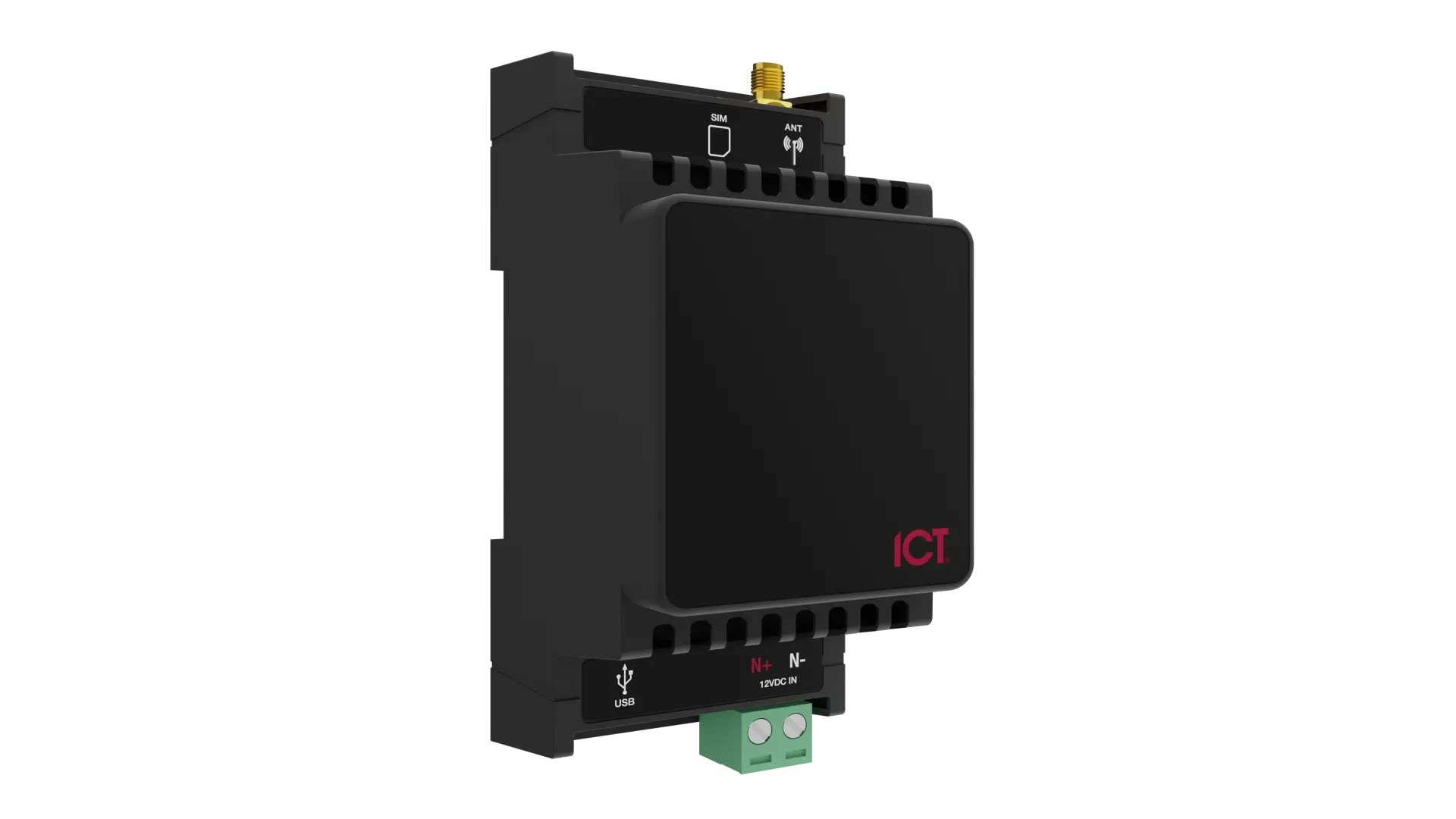

Protege DIN Rail
Cellular Modem
PRT-4G-USB
The Protege DIN Rail Cellular Modem is a cellular communication device that provides a convenient wireless connection for a Protege controller. With no physical network required this is an ideal solution for remote sites and installations where network infrastructure may be unavailable, or difficult and expensive to install. Supports both Protege GX and Protege WX controllers.
- Wireless IP alarm transmission for convenient, cost-effective monitored outbound reporting
- Secure encrypted communication when reporting via the ArmorIP reporting service
- Category M-1 cellular network capability with fallback to 2G GSM
- 4G, Dual Mode LTE-M/NB-IoT cellular technology
Features
On supported networks the modem can receive programming updates from the Protege GX system for Protege GX controllers.
The cellular modem can upload events from the Protege GX controller to the Protege GX events database.
On supported networks the modem can receive manual control commands from the Protege GX system for Protege GX controllers, providing live control over doors, areas, outputs, inputs and more.
With no physical network required the Protege DIN Rail Cellular Modem provides a connection solution without barriers. Cellular network communication means more accessible and more cost-effective reporting to monitoring station automation software than traditional copper line solutions, and enables access in locations where physical connections are not possible.
Secure Encrypted Communication
When using ICT's ArmorIP reporting service, provides secure AES encryption on data transmissions.
The cellular modem includes continuous connection detection and automatic fail reset. If there is an error with the cellular connection the controller will automatically reset the modem to attempt to resolve the connection.
The Protege controller web interface displays the cellular network connection status and details, including signal strength, the Mobile Network Operator the cellular modem is currently connected to, and its network registration status.
The modem can provide a secondary reporting path as a backup to existing reporting connections.
With validated cellular network providers across the globe, the Protege DIN Rail Cellular Modem can perform virtually anywhere.
For a list of validated network providers in your region, refer to the datasheet.
Specifications
| Ordering Information | |
| PRT-4G-USB | Protege DIN Rail Cellular Modem |
| Power Supply | |
| Operating Voltage | 12V DC |
| Operating Current | 300mA <Max) |
| Communication | |
| USB | USB-C |
| SIM Card Socket | Micro-SIM |
| Cellular Technology | 4G, Dual Mode LTE-M/NB-IoT |
| LTE Cat-M1 | Uplink up to 1 Mbps Downlink up to 588 Kbps |
| LTE Cat-NB2 | Uplink up to 160 Kbps Downlink up to 120 Kbps |
| Operating Frequencies (LTE) | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85 |
| Antenna Connection | |
| Antenna Connector | SMA |
| Antenna Impedance | 50ohm |
| Antenna Gain,VSWR | 5dBi, ≤2 |
| Antenna Frequency | 4G wide band 600-2700 MHz |
| Polarization and Radiation Direction | Vertical, Omnidirectional |
| Length | 320 ± 3 mm (12.6 ± .12 ") |
| Base Diameter | 30 ± 2 mm (1.18 ± .08 ") |
| Mounting | Magnetic Base |
| Dimensions | |
| Dimensions (L x W x H) | 39 x 90 x 60mm (1.53 x 3.54 x 2.36") |
| Net Weight | 70g (2.5oz) |
| Gross Weight | 200g (7.1oz) |
| Temperature | |
| Operating Temperature | -10° to 55°C (14° to 131°F) |
| Storage Temperature | -10°- 85°C (14° - 185°F) |
| Humidity | 0%-93% non condensing, indoor use only (relative humidity) |
Regulatory Notices
New Zealand (RSM) and Australia (RCM)
This equipment carries the R-NZ label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZ) communities.
CE – Compliance with European Union (EU)
Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.
This equipment complies with the rules of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.
Security Grade 4, Environmental Class II, EN 50131-1:2006+A2:2017, EN 50131-3:2009, EN 50131-6:2008+A1:2014, EN 50131-10:2014, EN 50136-1:2012, EN 50136-2:2013, EN 60839-11-1:2013, Power frequency magnetic field immunity tests EN 61000-4-8, Readers Environmental Class: IVA, IK07.
UK Conformity Assessment (UKCA) Mark
This equipment carries the UKCA label and complies with all applicable standards.
Lic. Number EU CE 5131A-ME910G1WW
UL/ULC (Underwriters Laboratories)
- UL1076 for Proprietary Burglar Alarm Units and Systems
- UL1610 for Central-Station Burglar-Alarm Units
- UL294 for Access Control System Units
- CAN/ULC S304 for Signal Receiving Centre and Premise Burglar Alarm Control Units
- CAN/ULC S559 for Fire Signal Receiving Centers and Systems
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Subpart C
This equipment complies with the limits for a Class C digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
ICES-003
This is a Class B digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (B)/NMB-3(B)
