- 1x ProtegeWX Controller (PRT-WX-DIN)
- 1x Protege DIN Rail 4A Intelligent Power Supply (PRT-PSU-DIN-4A)
- 1x Protege Touch Sense LCD Keypad - Black (PRT-KLCS-B)
- 1x tSec Mini DESfire Card Reader - Black (PRX-TSEC-MINI-DF-B)
- 1x tSec Standard DESfire Card Reader with Keypad and NFC/Bluetooth® - Black (PRX-TSEC-STD-DF-KP-BT-B)
- 5x Mifare DESFire EV1 Proximity Cards (PRX-ISO-DF)
- 5x Mifare 1K (S50) Proximity Cards ISO (PRX-ISO-MF)
Protege WX Training Kit
and Metal Base Enclosure
PRT-TRN-WX
The Protege WX training kit enables you to run through the facilitated training course with minimal physical hardware. The console keeps unsightly wires tucked into the base while the switches provide an easy way to control reader port configuration and the closing / opening of inputs.
- Simple and intuitive to use
- Front panel LEDs are easily viewable as the modules are mounted on the front of the console
- Close and open inputs by flicking the zone switches up and down
- Hidden wiring provides an uncluttered and organized display during the training demonstration

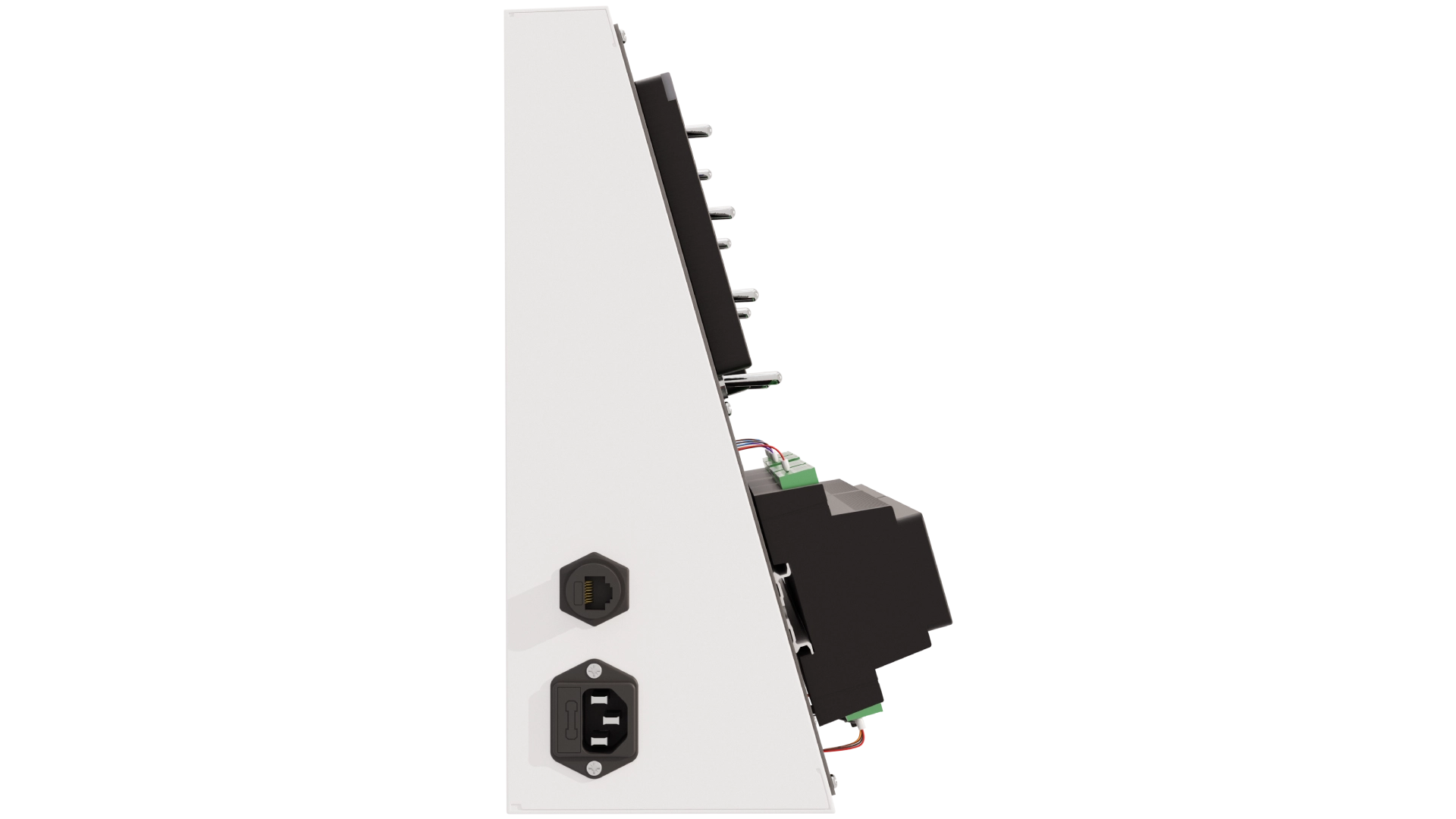

- Power and Ethernet ports located on the left side of the base for simple connection.
- Onboard RS-485 expansion port compatible with all Protege expander modules and accessories
- Modules and switches are clearly labeled for easy identification
- Easily switch between Protege GX and Protege WX by simply swapping out the controller
- Switch between Reader Port 1 and 2 by flicking a switch
Features
Training Console Steel Desktop Mounting Unit

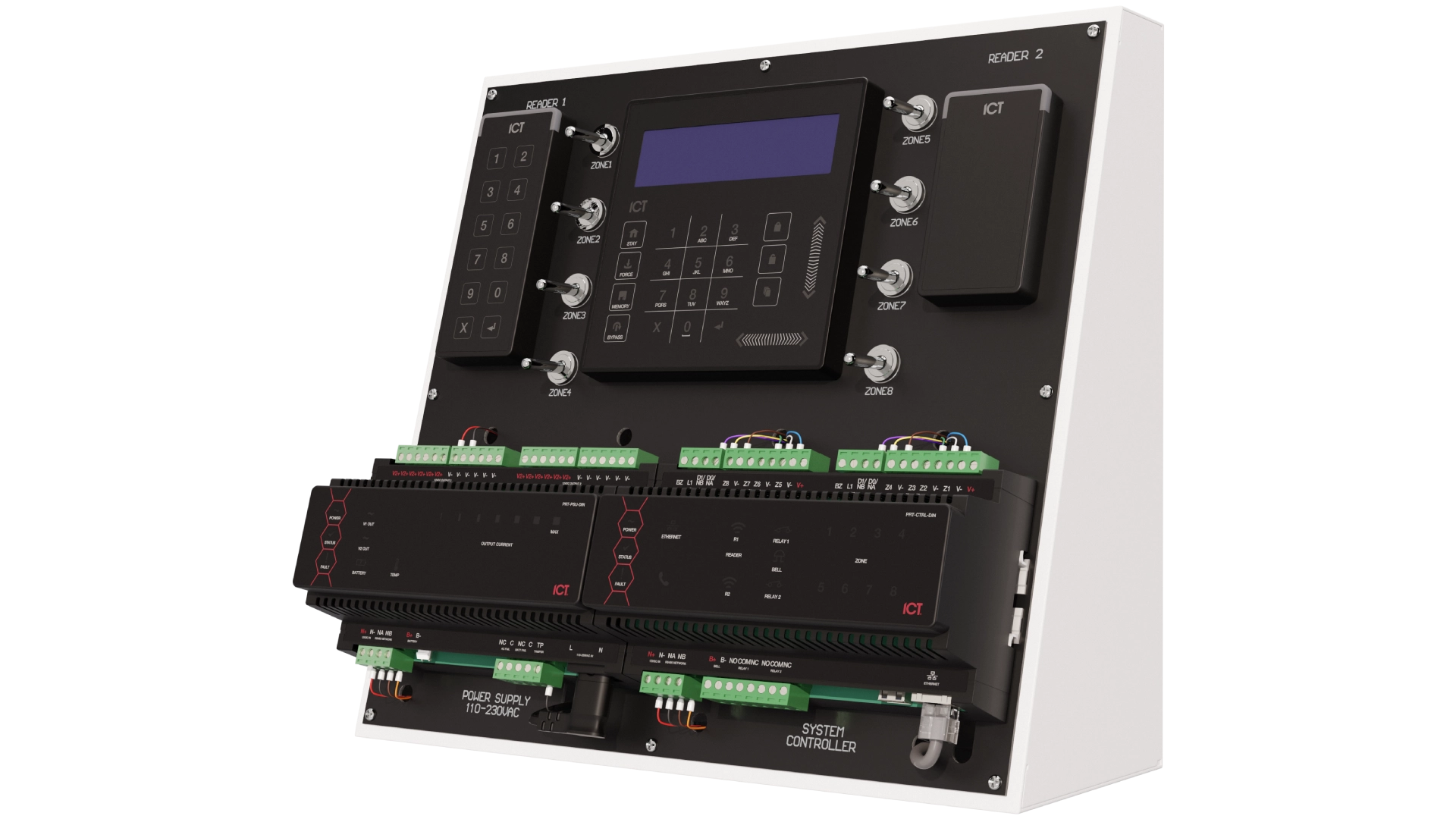

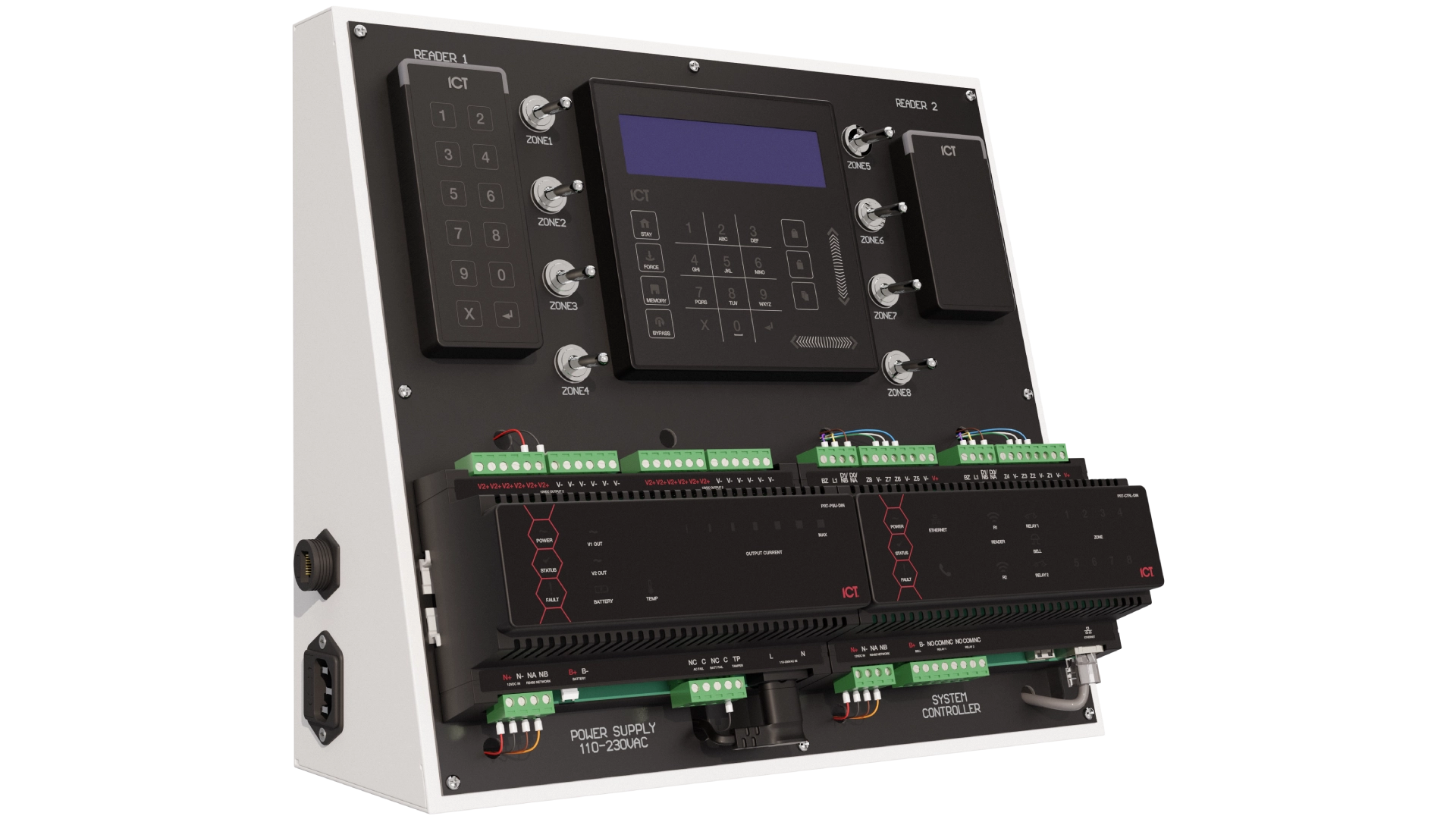

The desktop mounting unit is designed as a stylish and stable training console. The upright design allows for easy access to the tSec readers and keypad, while the cables and wiring are hidden and out of the way.
Protege WX DIN Rail Controller
The Protege WX DIN Rail Controller is the central processing unit responsible for the control of security, access control and automation in the Protege WX system, an advanced technology security product providing seamless and powerful integration of access, security and building automation managed from a browser interface.
Protege DIN Rail 4A Intelligent Power Supply
The Protege DIN Rail 4A Intelligent Power Supply provides 12VDC power ideal for running security, access control or automation devices along with large numbers of Protege network powered modules in the same installation.
Protege Touch Sense LCD Keypad
The Protege Touch Sense LCD Keypad provides a sleek, user friendly human interface to the Protege Integrated System, an advanced technology security product providing seamless and powerful integration of access, security and building automation.
The tSec Card Reader range provides a complete multi-technology smart card RFID solution. Compatible with all Wiegand data capable control systems and incorporating RS-485 communication, tSec Readers allow rapid deployment of secure technology in any environment.
Specifications
| Ordering Information | |
| PRT-TRN-WX | Protege WX Training Kit |
| PSU Power Supply | |
| Mains Input Voltage | 120VAC (90-264VAC, 47-63Hz) |
| Mains Input Operating Current | 20VAC 1.5A (Full Load) |
| DC Output (Combined) | 12.64VDC 4.0A Max (V1 Out + V2 Out Total) |
| DC Output (Single) | 12.2VDC 3A Max |
| Battery Charging | 500mA (Typical) *Additional to the 4A Combined DC Output |
| Batetry Low | 11.75VDC |
| Battery Restore | 12.5VDC |
| Controller Power Supply | |
| Operating Voltage | 11-14V DC |
| Operating Current | 120mA (typical) |
| DC Output (Auxiliary) | 10.45-13.85VDC 0.7A (typical) electronic shutdown at 1.1A |
| Bell DC Output (Continuous) | 10.4-13.45VDC 8 Ohm 30W Siren or 1.1A (Typical) Electronic Shutdown at 1.6A |
| Bell DC Output (Inrush) | 1500mA |
| Total Combined Current* | 3.4A (max) |
| Electronic Disconnection | 9.0VDC |
| Keypad Power Supply | |
| Operating Voltage | 11-14V DC |
| Operating Current | 60mA (95mA Max) |
| tSec Reader Power Supply | |
| Operating Voltage | 12VDC (9.5 to 14VDC) |
| Operating Current |
tSec Standard Reader: 254mA (Peak, Reading) |
| Controller Communication | |
| Ethernet | 10/100Mbps Ethernet communication link |
| RS-485 | 3 RS-485 communication interface ports, 1 for module communication and 2 for reader communication |
| Modem | 2400bps modem communication |
| Controller Reader Ports | |
| Readers | 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors |
| RS-485 reader port connections support configuration for OSDP protocol | |
| Inputs | |
| Controller (System) Inputs | 8 high security monitored inputs |
| PSU Inputs | Dedicated Hardware Tamper Input, 8 Trouble Inputs (internal) |
| Keypad Inputs | 2 standard or 4 using Input Duplex mode |
| Outputs | |
| Controller Outputs | 4 50mA (max) open collector outputs for reader LED and beeper or general functions 2 Form C relays - 7A N.O/N.C. at 30 VAC/DC resistive/inductive |
| PSU Outputs | 2 Solid-State Relay Outputs, 50mA 12V Max each |
| Keypad Outputs | 1 open collector (50mA Max) output. Programmable for all output functions 3 system status LEDs 1 system beeper |
| Keypad User Interface | |
| User Interface Display | Energy smart backlit LCD 16x2 alphanumeric display with enhanced viewing angle |
| User Interface Keypad | Combined 23 key capacitive touch keypad with 3 system status LEDs |
| tSec Reader Communications | |
| Card Read Range | DESFire EV1 ISO 15mm (0.6") |
| Tag Read Range | DESFire EV1 6mm (0.23") |
| Wiegand Interface | Multiple format 26 or 34 Bit data 0 and data 1, card defined |
| Frequency | 13.56 MHz ISO/IEC 14443 Type A |
| Multi Conductor Cable | Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft) Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft) |
| OSDP Communication | OSDP standard 2.1.5 with Secure Channel Protocol |
| Bluetooth® Wireless Technology | |
| Bluetooth® Read Range | Proximity mode: up to 0.5m (1.6ft) Configurable Action unlock (shake): up to 5m (16.4ft) Configurable |
| Bluetooth® Electronic Credential Transmission Technology | NRF8001 Bluetooth® version 4.0 compliant Proprietary data exchange protocol. AES128 Encrypted Reader App Version: 1.04.175 and above Credentials can be distinguished by unique site code and card number |
| Bluetooth® Wireless Device | Protege Mobile 1.0.x |
| NFC | |
| NFC Read Range | Up to 60mm |
| NFC (Near-field communication) electronic credential transmission technology | Android 4.4 or above, with phones which support ISO7816-4 Proprietary Secured DESFire credential Credential is AES-256 (NIST certified AES algorithm) Reader App Version: 1.04.175 and above Credentials can be distinguished by unique site code and card number |
| NFC Wireless Device | Protege Mobile 1.0.x |
| Dimensions | |
| Dimensions (L x W x H) | 330 x 180 x 300mm (13 x 7.1 x 11.8") |
| Net Weight | 4.4kg (9.7lb) |
| Gross Weight | 5.9kg (13lb) |
| Operating Conditions | |
| Operating Temperature | -10° to 55°C (14° to 131°F) |
| Storage Temperature | -10˚ to 85˚C (14˚ to 185˚F) |
| Humidity | 0%-93% non-condensing, indoor use only (relative humidity) |
