The convenience of RF access control transmitters combined with the security of a personal alarm system.
Wireless 433MHz

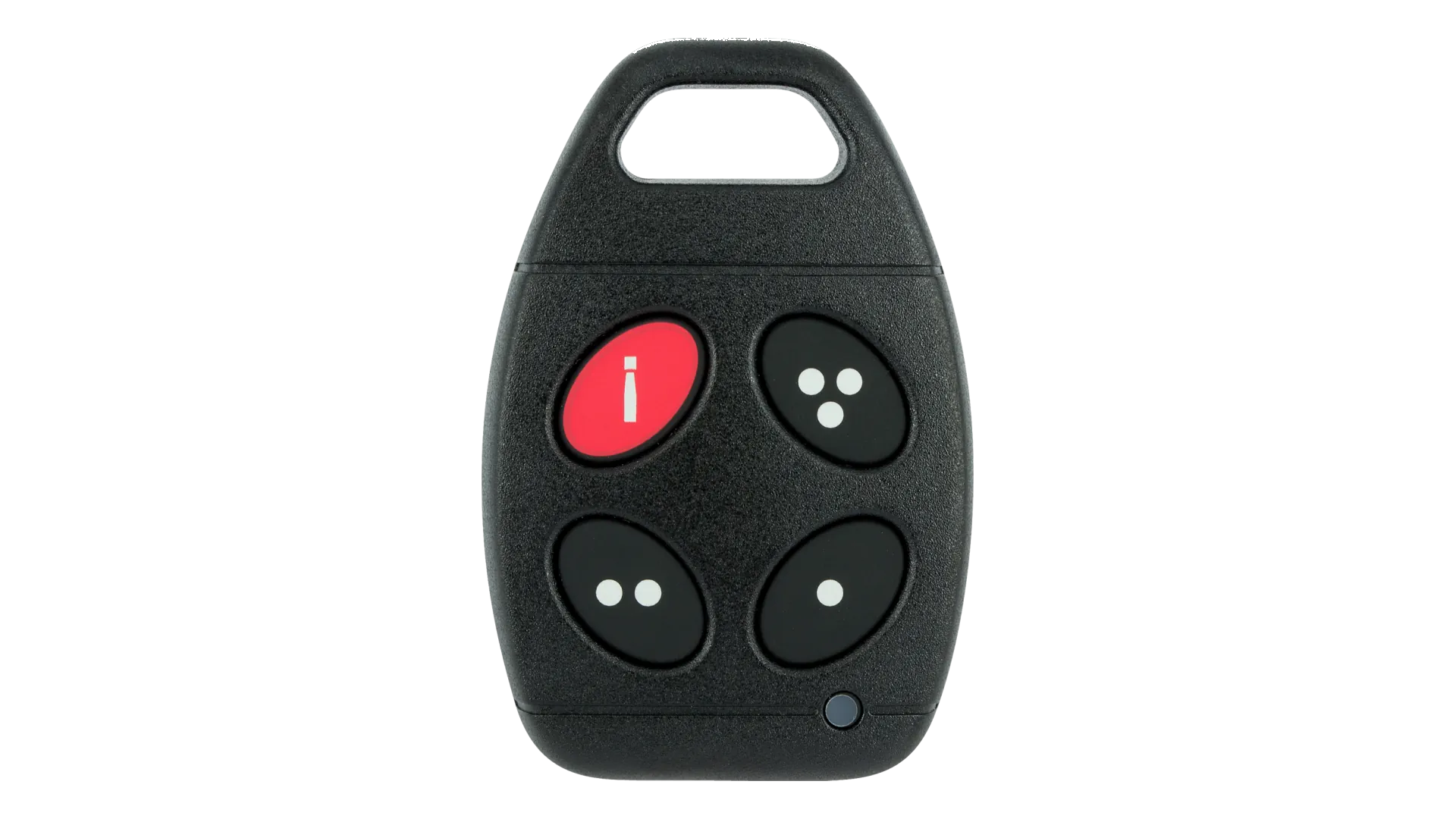

4 Button Transmitter
RF-REM4-433
The Wireless 433MHz 4 Button Transmitter is designed for long range wireless access control of garage doors or sliding gates. Each transmitter is encoded with a Wiegand compatible ID number so that usage can be controlled and recorded by most electronic access control systems on the market. This high quality transmitter is also hermetically sealed to protect against water or other foreign substances. Delivering an impressive read range from 100 to 200m (328 to 656ft) in open environments, this transmitter offers both convenience and security with unmatched performance.
- Long range, up to 200m (656ft)
- 4 buttons for access control and personal alarm
- Conveniently attaches to key chain
- Standard Wiegand output
- Rolling code prevents duplication
- Optional DESFire, MIFARE, or HID proximity device for short range use
- Hermetically sealed (waterproof)
Features
With the installation of additional receivers in desired areas, the red button can be used as a personal alarm device. In the event of an emergency where someone presses the red button, a nearby receiver will detect the signal and activate an alarm relay. This alarm relay can be used for annunciation or to activate a third party alarm system.
The wireless transmitter is also available with an HID compatible proximity device inside. This allows the transmitter to be used on short range proximity readers for standard door access. This option eliminates the need to carry a separate access card.
Standard Wiegand output is compatible with most electronic access control systems when used alongside the ICT Wireless 433MHz Receiver. Rolling code prevents credential duplication.
Specifications
| Wireless 433MHz ICT Transmitter |
Wireless 433MHz DESFire Transmitter |
Wireless 433MHz MIFARE Transmitter |
Wireless 433MHz HID26 Transmitter |
Wireless 433MHz Transmitter |
|
| Ordering Information | RF-REM4-433-ICT | RF-REM4-433-DF | RF-REM4-433-MF | RF-REM4-433-HID26 | RF-REM4-433 |
| Technology | |||||
| ICT Format | | | | | |
| MIFARE DESFire | | | | | |
| MIFARE | | | | | |
| 125kHz | | | | | |
| 433.92MHz | | | | | |
| Features | |||||
| Buttons | 4 | ||||
| Supply | CR2032 3V | ||||
| Battery Life | 12 to 24 months | ||||
| Current Consumption | 15mA | ||||
| Frequency | 433.92MHz | ||||
| Output Code Combinations | 10 | ||||
| Rated E.R.P | 58 to 100mW | ||||
| Read Range in Free Space* | 100 to 200m (328 to 656ft) | ||||
| Dimensions | |||||
| Dimensions | 60 x 40 x 16 mm (2.36 x 1.57 x 0.62") | ||||
| Net Weight | Approx 24g (0.84oz) | ||||
| Gross Weight | Variable packed qty. | ||||
| Operating Conditions | |||||
| Operating Temperature | -20˚ to 55˚C (-4˚ to 131˚F) | ||||
* Read range is dependent upon reader technology and installation conditions and may vary accordingly.
Regulatory Notices
RCM (Australian Communications and Media Authority (ACMA))
This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.
CE – Compliance with European Union (EU)
Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.
This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.
Security Grade 4, Environmental Class II, EN 50131-1:2006+A2:2017, EN 50131-3:2009, EN 50131-6:2008+A1:2014, EN 50131-10:2014, EN 50136-1:2012, EN 50136-2:2013, EN 60839-11-1:2013, Power frequency magnetic field immunity tests EN 61000-4-8, Readers Environmental Class: IVA, IK07.
ICES-003
his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (A)/NMB-3(A)
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class A.
This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
