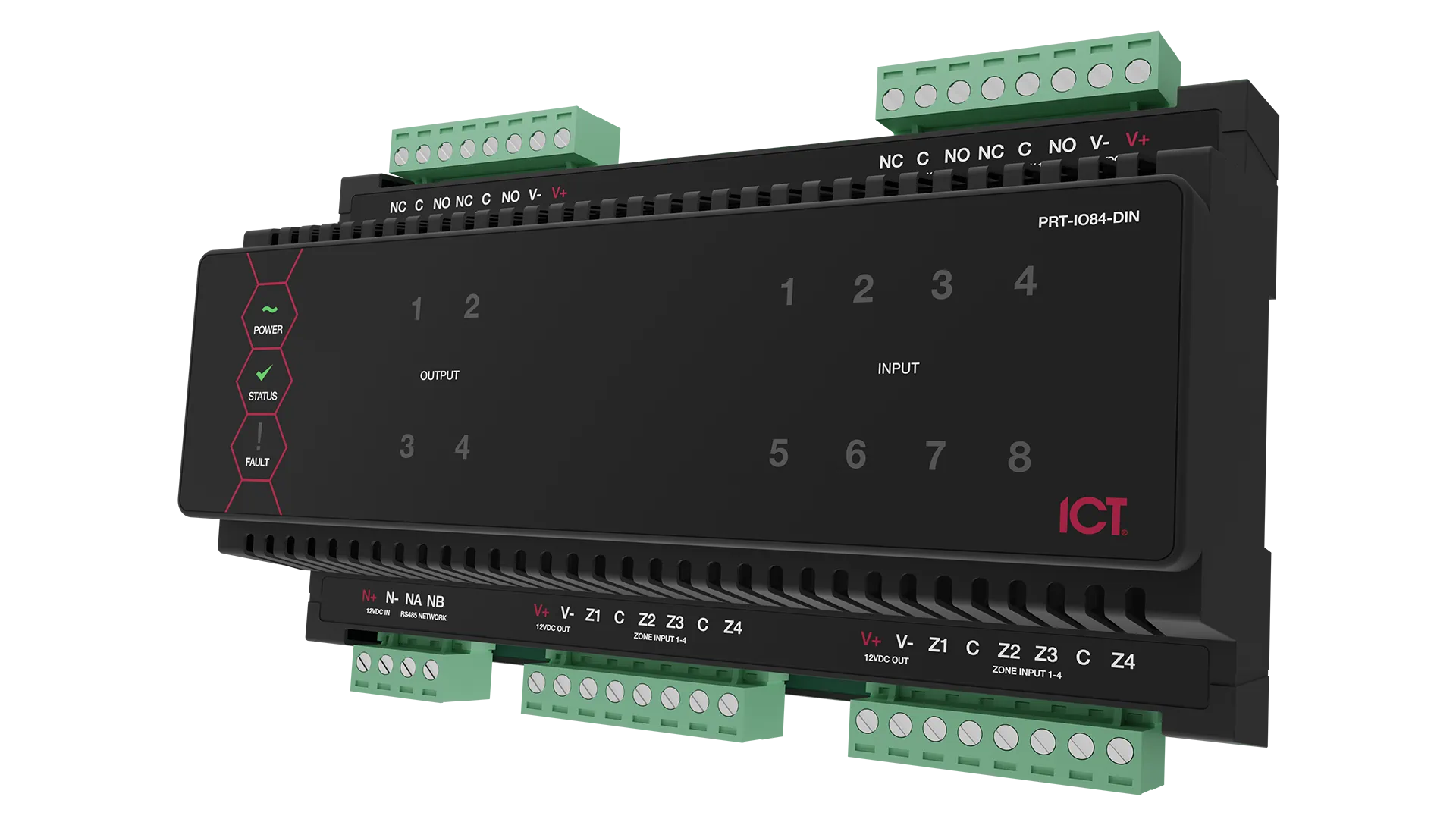

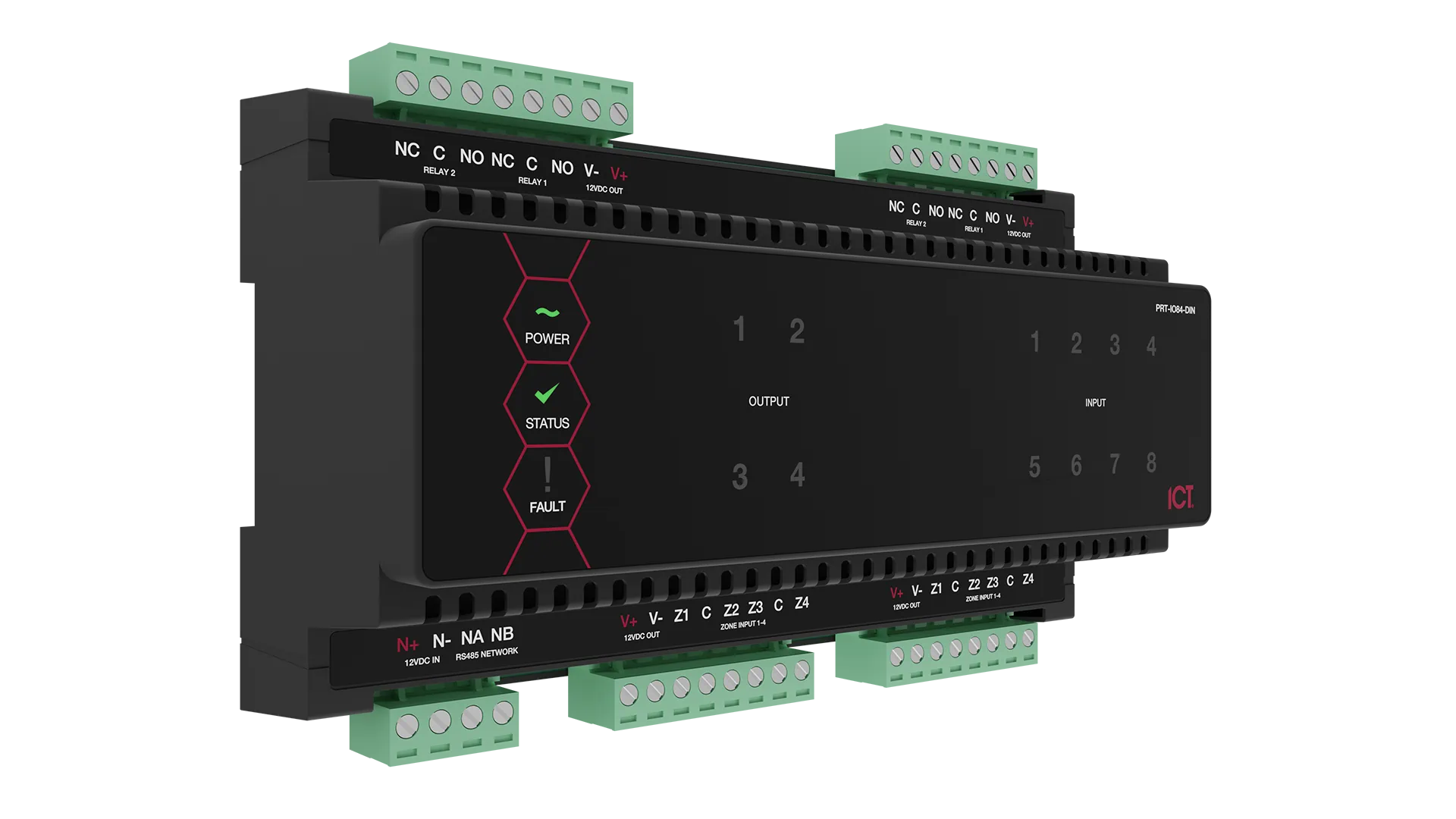

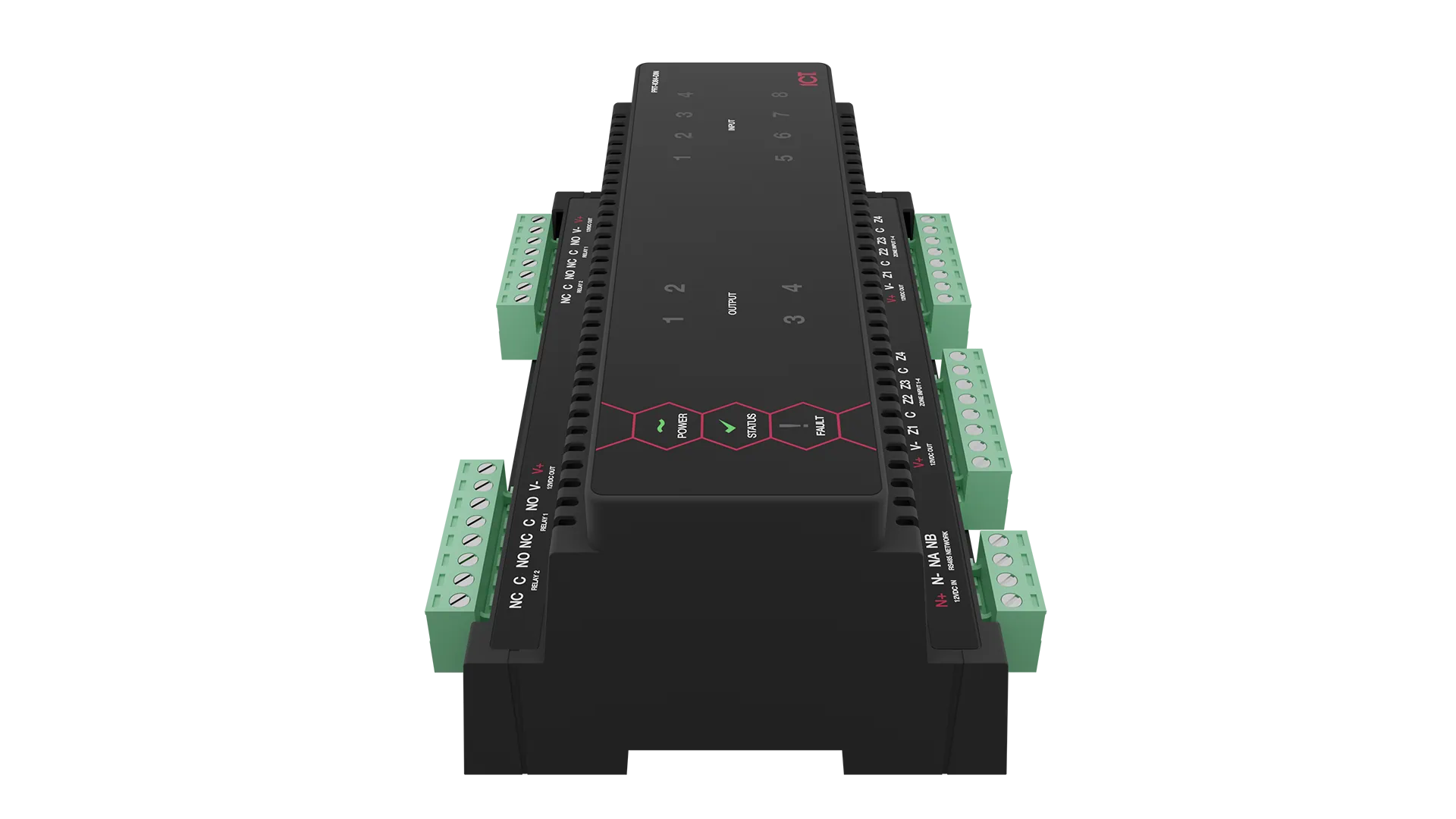

Protege DIN Rail
8 Input / 4 Output Expander

PRT-IO84-DIN

The Protege DIN Rail 8 Input 4 Output Expander extends the number of inputs by 8, allowing monitoring of a wide range of EOL capable or open contact sensors; and extends the number of outputs by 4, featuring high current Form C relays for controlled automation of building systems including lighting and HVAC.

8 monitored inputs
Connect any combination of normally closed or normally open inputs, configurable per input
Four-state input alarm using resistors to provide short, alarm, closed and tamper conditions
4 Form C relays capable of switching resistive loads up to 7 Amps

Features

Connectivity and System Expansion

Extending the Protege system with local inputs and outputs allows convenient, cost-effective expansion with the following additional benefits:

8 inputs can be assigned to any 4 areas in the system each being processed using different options or features
4 multiple-function outputs available for use in any programmable output configuration
Outputs can be configured to automatically turn on or resume their previous state upon restoration of power or communication failure
Address configuration is achieved using the address programming feature of the Protege System Controller.

Power Supply

Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution.

Outputs

The input/output expander has 4 programmable Form C relay outputs which can be used to activate bell sirens, lighting circuits, door locks, relay accessory products and other automation points.

Communication

A single RS-485 communication interface port used for all network communication functions and interconnection to other modules.

LED Indicators

The input/output expander features comprehensive diagnostic indicators that can aid in diagnosing faults and conditions. LED indicators include:

Status indicator
Fault indicator
Power indicator
Input indicators
Output indicators

Upgradable Firmware

Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.

Specifications

Ordering Information
PRT-IO84-DIN	Protege DIN Rail 8 Input/4 Output Expander
Power Supply
DC Input Voltage	11-14VDC
DC Output Voltage (DC IN Pass-Through)	10.45-13.85VDC 0.7A (Typical) Electronic Shutdown at 1.1A
Operating Current	80mA (typical)
Low Voltage Cutout	8.7VDC
Low Voltage Restore	10.5VDC
Communication
RS-485	Isolated module network
Outputs
Outputs	4 FORM C Relays - 7A N.O./N.C. at 30 VAC/DC resistive/inductive
Inputs
Inputs	8 (10ms to 1hr input speed programmable)
Trouble Inputs	16
Dimensions
Dimensions (L x W x H)	156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
Net Weight	310g (10.9oz)
Gross Weight	380g (13.4oz)
Operating Conditions
Operating Temperature	-10° to 55°C (14° to 131°F)
Storage Temperature	-10˚- 85˚C (14˚ - 185˚F)
Humidity	0%-93% non condensing, indoor use only (relative humidity)
Mean Time Between Failures (MTBF)	587,177 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Downloads

User Documentation

Protege DIN Rail 8 Input 4 Output Expander Installation Manual

Firmware

PRT-IO84-DIN App Firmware

Supporting Material

Protege DIN Rail 8 Input 4 Output Expander Datasheet

Certifications & Warranties

CE Declaration of Conformity

Standard Product Warranty

Regulatory Notices

RCM (Australian Communications and Media Authority (ACMA))

This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.

CE – Compliance with European Union (EU)

Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.

This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.

UK Conformity Assessment (UKCA) Mark

This equipment carries the UKCA label and complies with all applicable standards.

Industry Canada

ICES-003

his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

Federal Communications Commission (FCC)

FCC Rules and Regulations CFR 47, Part 15, Class A.

This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
