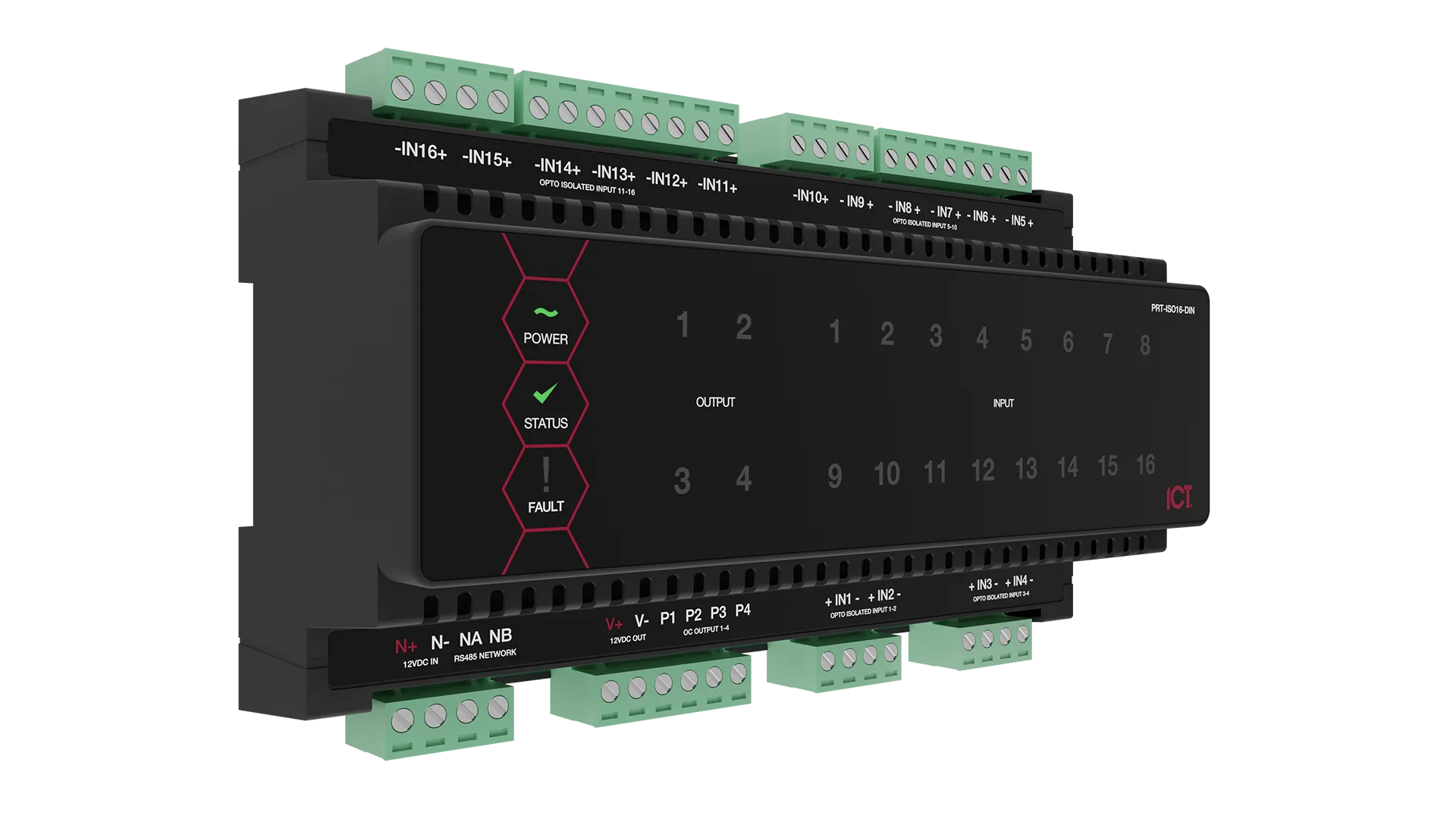

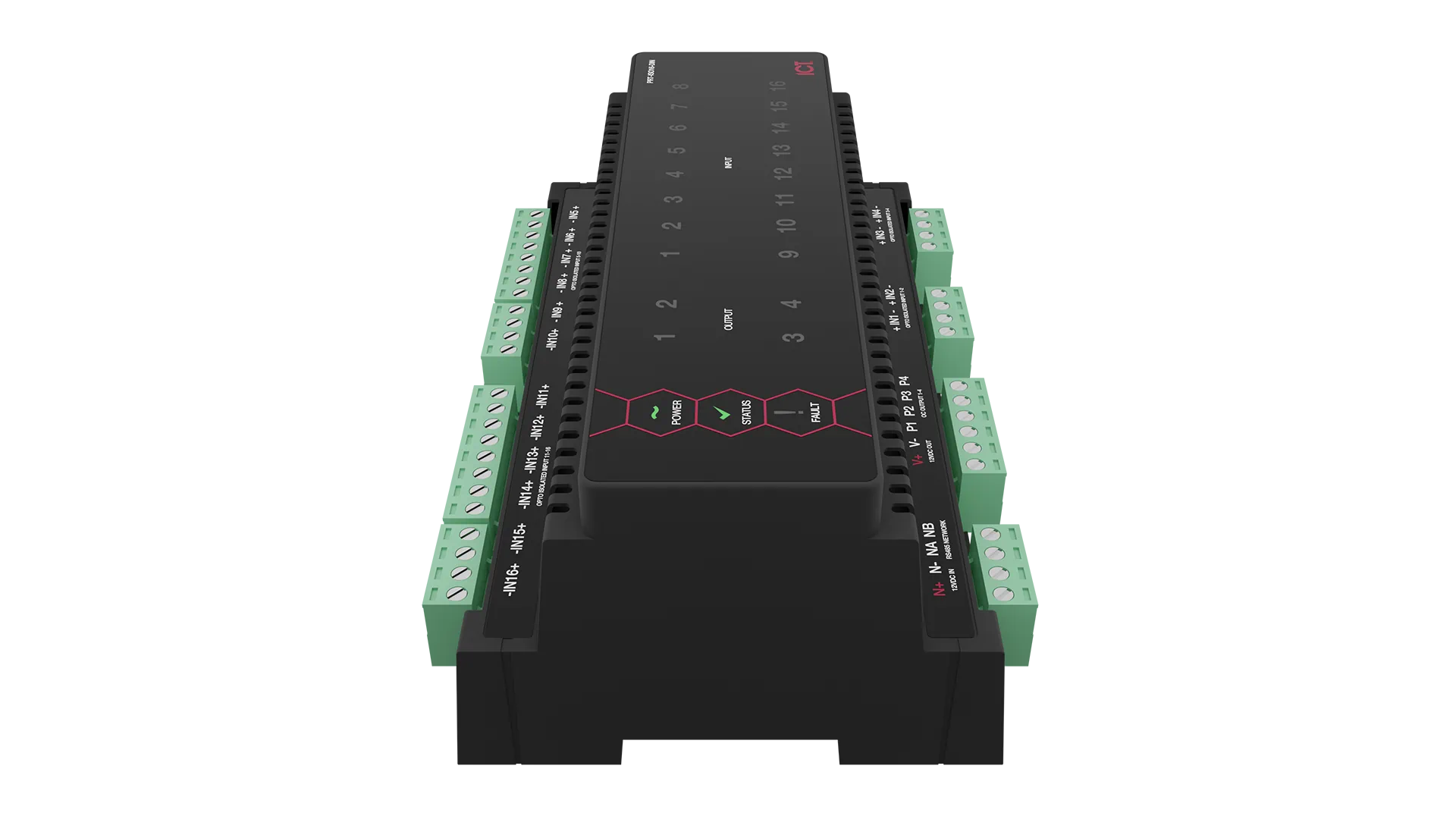

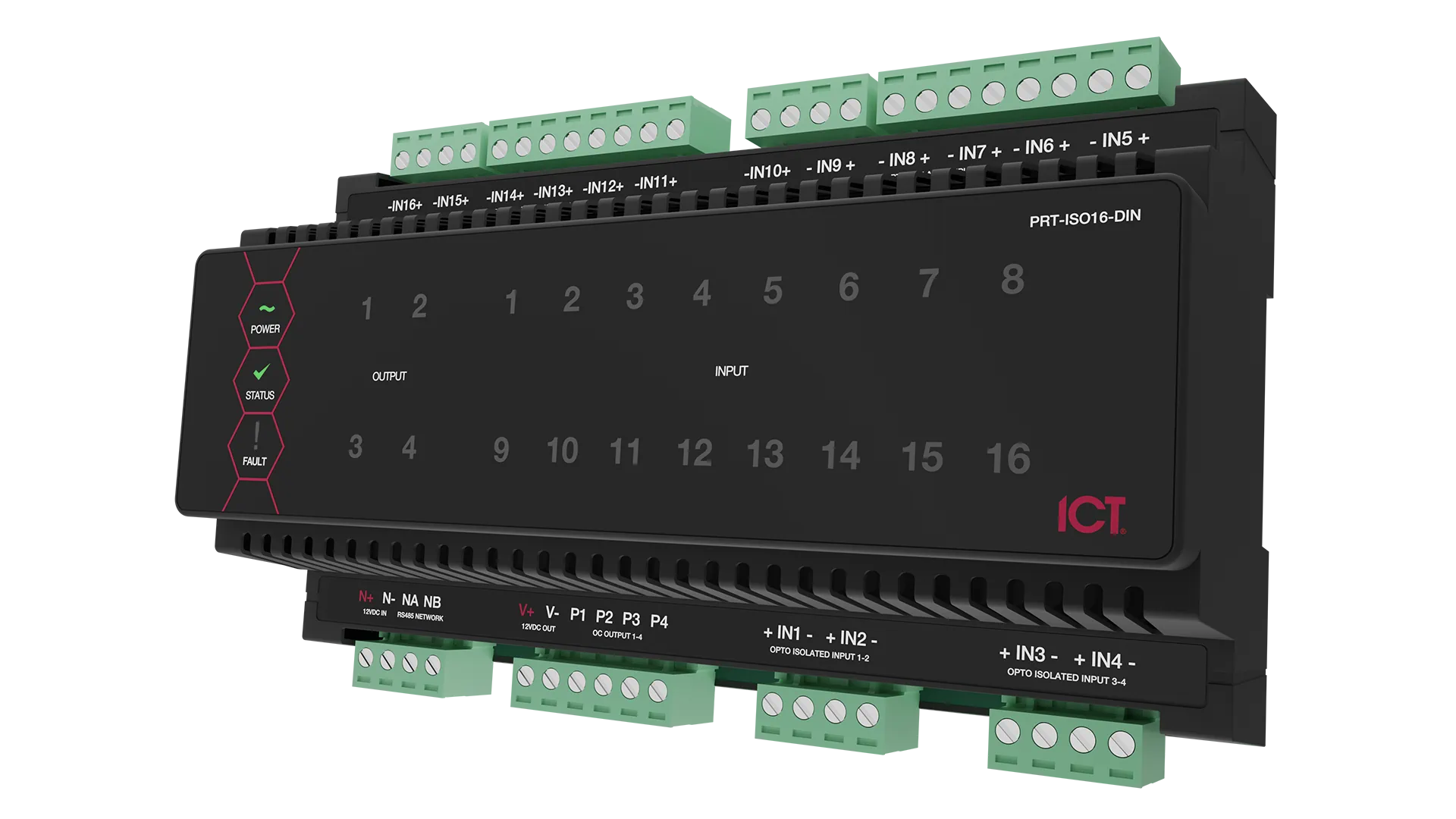

Protege DIN Rail
16 Input Opto-Isolated Expander

PRT-ISO16-DIN

The Protege DIN Rail 16 Input Opto-Isolated Expander provides the interface of up to 16 low or high voltage signals to the Protege system. The Input Expander provides extensive hardware advancements that allow flexible programming and configuration, and is designed for use with industry standard DIN Rail mounting.

16 opto-isolated inputs capable of handling high voltage DC and AC signals
2 state zone alarm providing alarm and closed conditions
Connect any combination of normally closed or normally open inputs
4 50mA (Max) open collector outputs

Features

Connectivity and System Expansion

Extending the Protege system with local inputs and outputs allows convenient, cost-effective expansion with the following additional benefits:

16 opto-isolated inputs capable of a large voltage range, ideal for use in lift control or automation installs
4 multiple function outputs for use in any programmable output entry, ideal for connection in an electrical switch room to control signage, lighting and building automation or system indicators
Address configuration is achieved using the address programming feature of the Protege System Controller

Power Supply

Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution.

Communication

A single RS-485 communication interface port used for all network communication functions and interconnection to other modules.

LED Indicators

The input expander features comprehensive diagnostic indicators that can aid in diagnosing faults and conditions. LED indicators on the input expander include:

Status indicator
Fault indicator
Power indicator
Output indicators
Input indicators

Upgradable Firmware

Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.

Specifications

Ordering Information
PRT-ISO16-DIN	Protege DIN Rail 16 Input Opto-Isolated Expander
Power Supply
DC Input Voltage	11-14V DC
DC Output Voltage (DC IN Pass-Through)	10.45-13.85VDC 0.7A (Typical) Electronic Shutdown at 1.1A
Operating Current	80mA (typical)
Low Voltage Cutout	8.7VDC
Low Voltage Restore	10.5VDC
Communication
RS-485	Isolated module network
Inputs
Operating Voltage	10V to 250V (DC/AC RMS) 35-75Hz
Input Type	16 galvanic isolated (10ms to 1hr input speed programmable)
Input Current Drawn	Current 2mA per input at 220VDC
Outputs
Outputs	2 50mA (max) open collector
Dimensions
Dimensions (L x W x H)	156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
Net Weight	289g (10.2oz)
Gross Weight	390g (13.8oz)
Operating Conditions
Operating Temperature	-10° to 55°C (14° to 131°F)
Storage Temperature	-10°- 85°C (14° - 185°F)
Humidity	0%-93% non condensing, indoor use only (relative humidity)
Mean Time Between Failures (MTBF)	784,316 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Downloads

User Documentation

Protege DIN Rail 16 Input Expander Installation Manual

Firmware

PRT-ZX16-DIN App Firmware

Supporting Material

Protege DIN Rail 16 Input Opto Isolated Expander Datasheet

Certifications & Warranties

CE Declaration of Conformity

Standard Product Warranty

Regulatory Notices

RCM (Australian Communications and Media Authority (ACMA))

This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.

CE – Compliance with European Union (EU)

Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.

This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.

UK Conformity Assessment (UKCA) Mark

This equipment carries the UKCA label and complies with all applicable standards.

Industry Canada

ICES-003

his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

Federal Communications Commission (FCC)

FCC Rules and Regulations CFR 47, Part 15, Class A.

This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
