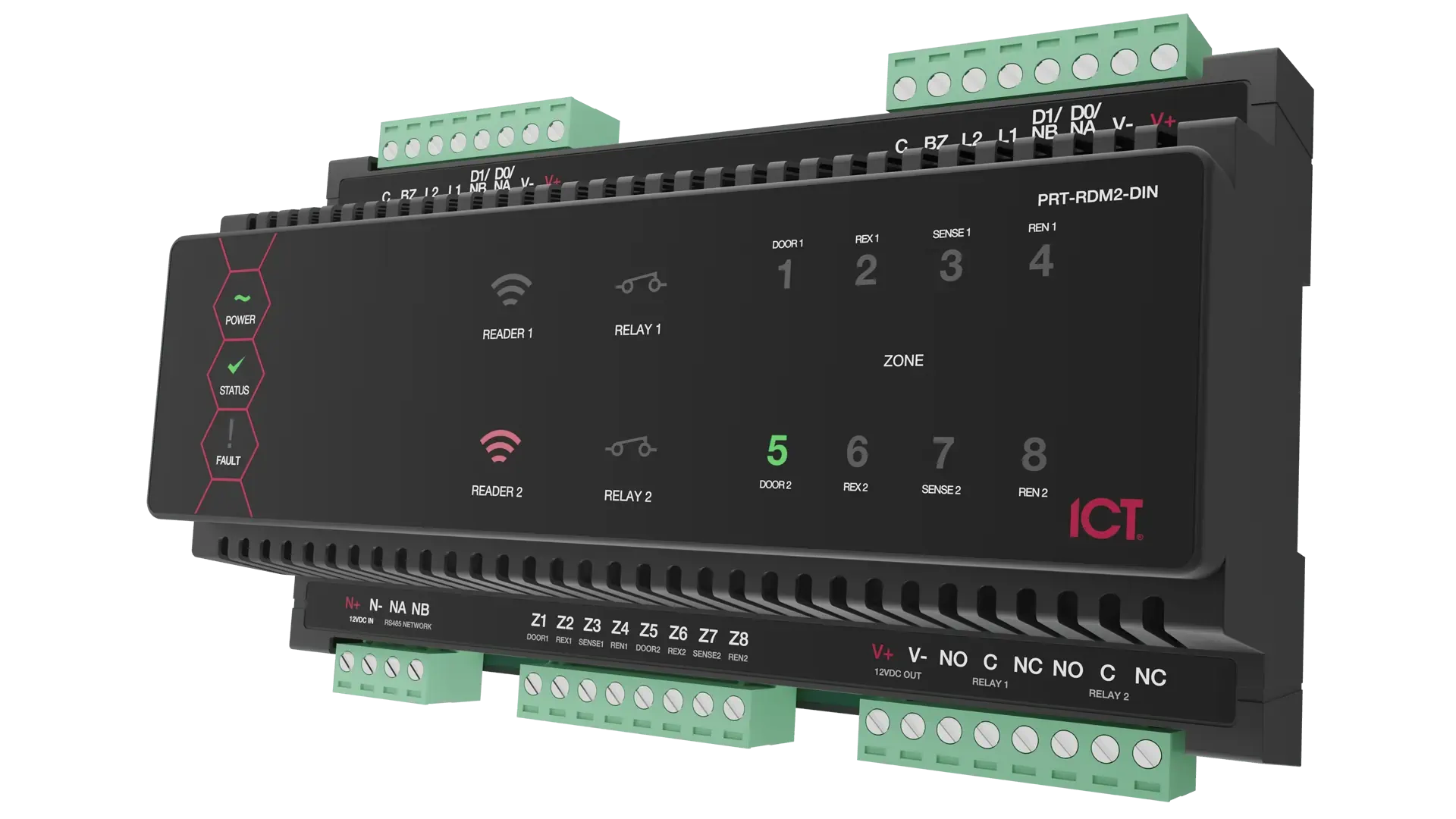

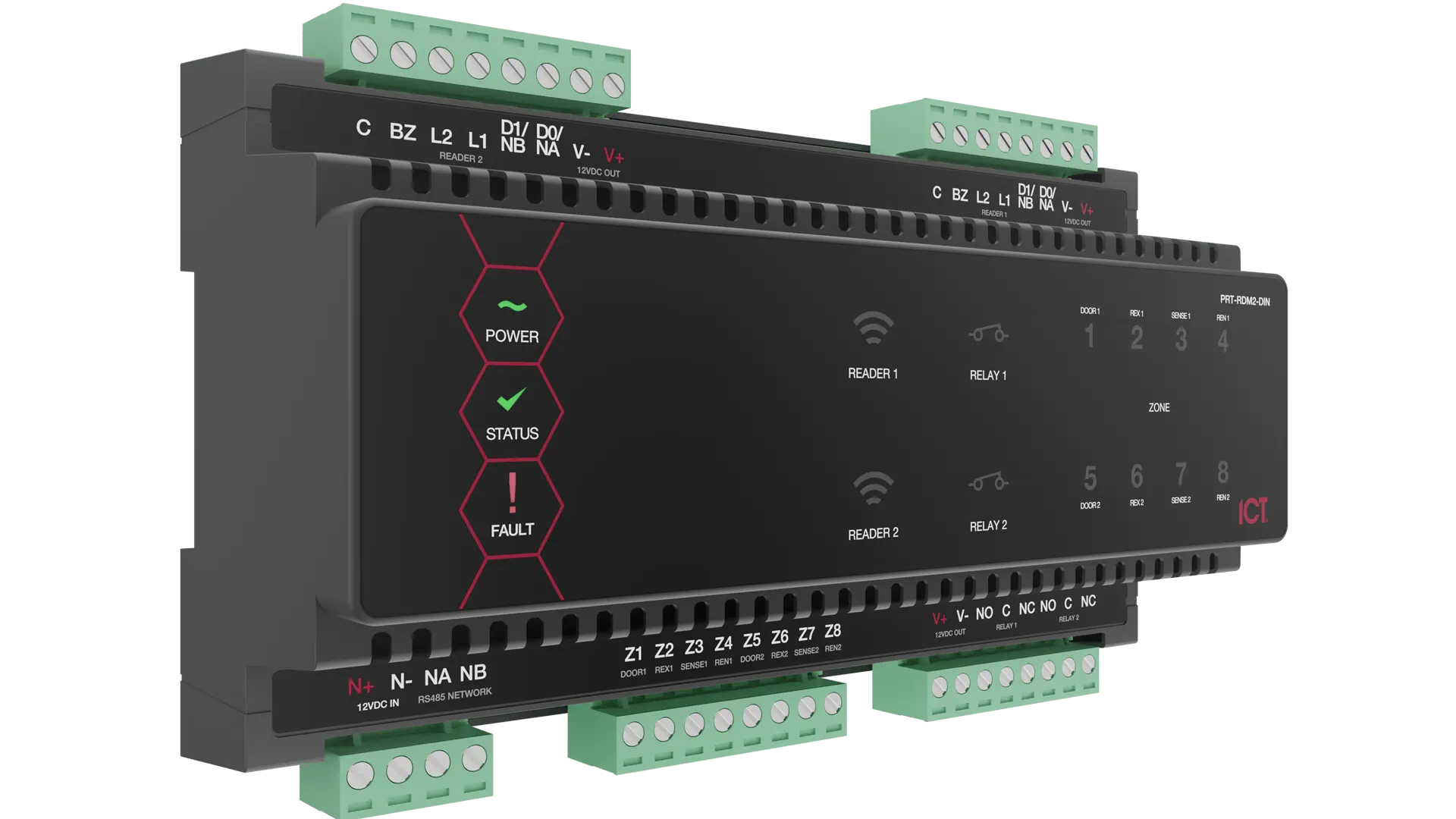

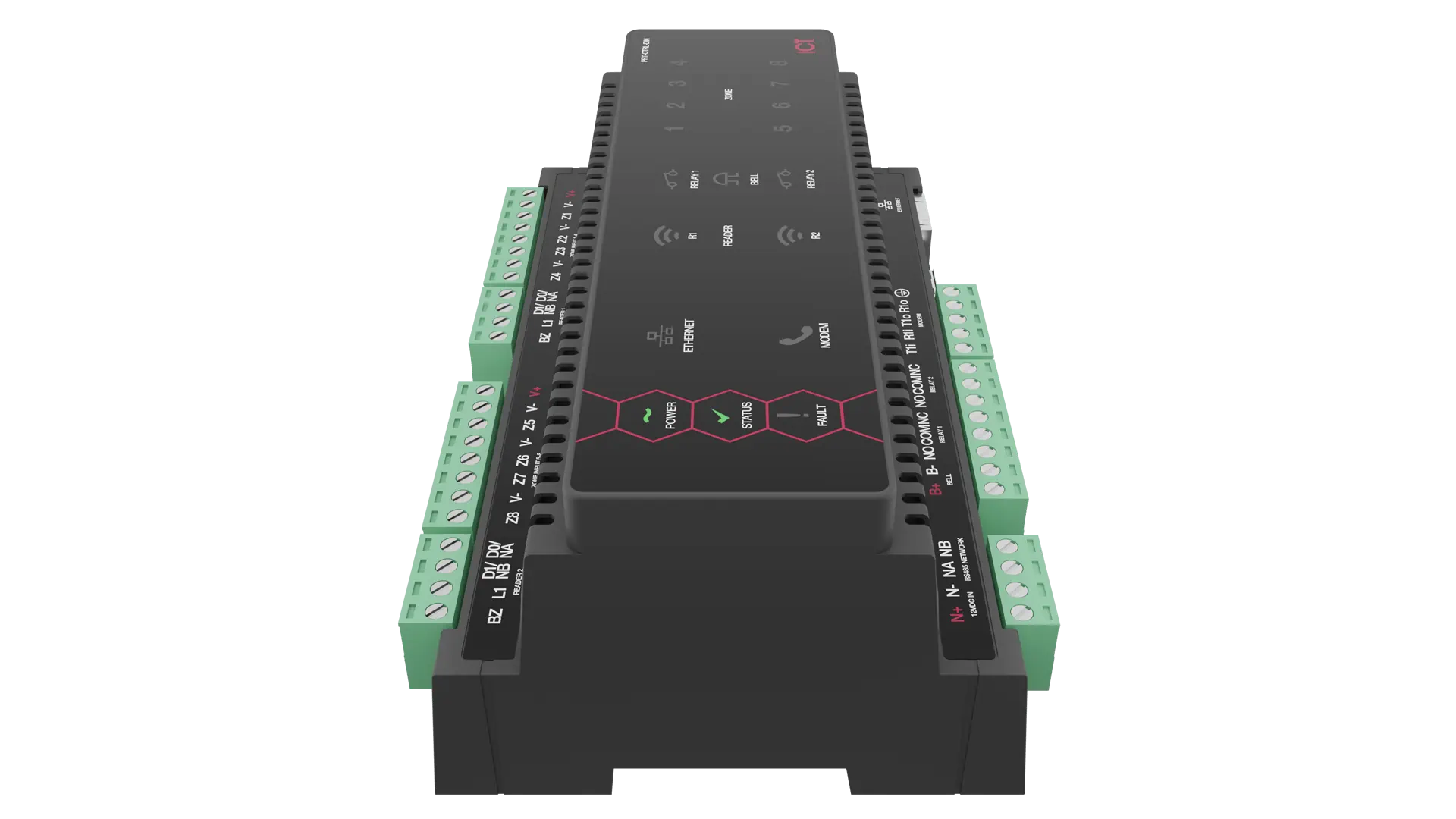

Protege DIN Rail
2 Door Reader Expander

PRT-RDM2-DIN-485

The Protege 2 Door Reader Expander delivers up to 4 reader inputs and 2 locking device outputs for access management in the Protege system.

With 8 inputs that can be used for extended monitoring functionality, and 6 open collector outputs available for management of controllable devices, the Reader Expander features extensive hardware advancements that support flexible security and access control, alarm monitoring and building automation.

2 doors (4 readers)
8 multi purpose inputs
2 Form C relay outputs
6 low current outputs

Features

Connectivity and System Expansion

Extending the Protege system with local inputs and outputs from the Reader Expander allows for a convenient, cost effective expansion and the added benefit of dual functionality on door monitoring inputs.

8 high security inputs can be used to perform system monitoring, alarm and automation functions. All 8 inputs have preassigned functions that are processed by the reader expander for door control. Each function can be enabled individually.
6 open collector outputs can be used within the system for the management of controllable devices such as relays, lighting and building automation.
System expansion is achieved seamlessly by connecting additional expander modules
Address configuration is achieved using the address programming feature of the Protege System Controller.

Flexible Reader Support

Provides 2 reader ports that can be independently configured for either Wiegand or RS-485 reader operation, allowing the connection of up to 4 readers controlling 2 doors.

Choose Wiegand readers for compatibility with all standard access control systems, or RS-485 for fast, secure communication.

RS-485 readers provide the added benefits of being easier and more cost effective to wire and deploy, and allow for direct integration with Protege systems, enabling you to make changes on the fly once readers are installed. RS-485 also allows for longer cable runs and offers a simpler firmware update process.

OSDP protocol configuration in RS-485 offers additional security and adds scalability, flexibility and ease of implementation.*

* The ICT implementation of OSDP conforms to a subset of the OSDP functionality. For specifications and reader configuration, refer to AN-254 Configuring OSDP Readers.

Communication

A single RS-485 communication interface port used for all network communication functions and interconnection to other modules.

Integrated Arming/Disarming

Featuring advanced integration of arming and disarming solutions for control of hundreds of alarm areas, the module allows a user to arm and disarm an area from an input associated with a door:

Deny access to a user based on the status of the area and the ability for the user to control the area they are entering, in turn reducing false alarms
Implement vault control areas to manage time delayed access and unlocking of vault areas in banking facilities without the need for additional hardware control devices
Control access to a keypad using a card and PIN function, or allow card presentation to automatically log the user in at the associated keypad
Disarm an area associated with an elevator floor on access, or prevent the user from gaining access to the floor based on the area status associated with the floor
Repeated presentation of an access card can arm an area associated with the entry or exit direction of the door being accessed
Arm large numbers of areas using area groups

Upgradable Firmware

Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.

Power Supply

Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution.

Specifications

Ordering Information
PRT-RDM2-DIN-485	Protege DIN Rail 2 Door Reader Expander
Power Supply
DC Input Voltage	11-14VDC
DC Output Voltage	10.83-14.0VDC 0.7A (typical) electronic shutdown at 1.1A
(DC IN Pass Through)	Reader 1&2 10.45-13.85VDC pass through share 0.7A (typical) electronic shutdown at 1.1A
Operating Current	80mA (typical)
Total Combined Current*	1.56A (max)
Low Voltage Cutout	8.7VDC
Low Voltage Restore	10.5VDC
Communication
RS-485	Module network
Offline Operation
Offline Access Modes	All Users, First 10 Users plus 150 Card Cache, No Users
Readers
Reader Configurations	2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors **
	RS-485 reader port connections support configuration for OSDP protocol
Outputs
Lock Outputs	2 Form C relay outputs, 7A N.O/N.C. at 30 VAC/DC resistive/inductive
PGM Outputs	6 (50mA max) open collector
Inputs
Inputs	8 high security monitored inputs (10ms to 1hr input speed programmable)
Trouble Inputs	16
Dimensions
Dimensions (L x W x H)	156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
Net Weight	300g (10.6oz)
Gross Weight	370g (13.1oz)
Operating Conditions
Operating Temperature	UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)
Storage Temperature	-10°- 85°C (14° - 185°F)
Humidity	0%-93% non condensing, indoor use only (relative humidity)
Mean Time Between Failures (MTBF)	622,997 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

* The Total Combined Current refers to the current that will be drawn from the external power supply to supply the expander and any devices connected to its outputs. The Auxiliary outputs are directly connected via thermal resettable fuses to the N+ N- input terminals, and the maximum current is governed by the trip level of these fuses.

** Each reader port supports either Wiegand or RS-485 reader operation, but not both at the same time. If combining reader technologies, they must be connected on separate ports.

The ICT implementation of OSDP conforms to a subset of the OSDP functionality. For specifications and reader configuration, refer to AN-254 Configuring OSDP Readers, available from the Integrated Control Technology website.

Downloads

User Documentation

Protege DIN Rail 2 Door Reader Expander Installation Manual

Firmware

PRT-RDM2-DIN-485 App Firmware

Supporting Material

Protege DIN Rail 2 Door Reader Expander Datasheet

Certifications & Warranties

CE Declaration of Conformity

Standard Product Warranty

Regulatory Notices

RCM (Australian Communications and Media Authority (ACMA))

This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.

AS/NZS 2201.1 Class 5

Protege systems conform to AS/NZS 2201.1:2007 Class 5 intruder alarm systems standards for the construction, operation, performance and installation of intruder alarm equipment and systems installed in client's premises.

CE – Compliance with European Union (EU)

Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.

This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.

UK Conformity Assessment (UKCA) Mark

This equipment carries the UKCA label and complies with all applicable standards.

UL/ULC (Underwriters Laboratories)

UL 294 for Access Control System Units
CAN/ULC S319 for Electronic Access Control Systems

Industry Canada

ICES-003

his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

Federal Communications Commission (FCC)

FCC Rules and Regulations CFR 47, Part 15, Class A.

This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
