- Latest Suprema algorithm
- 1.2GHz quad-core CPU

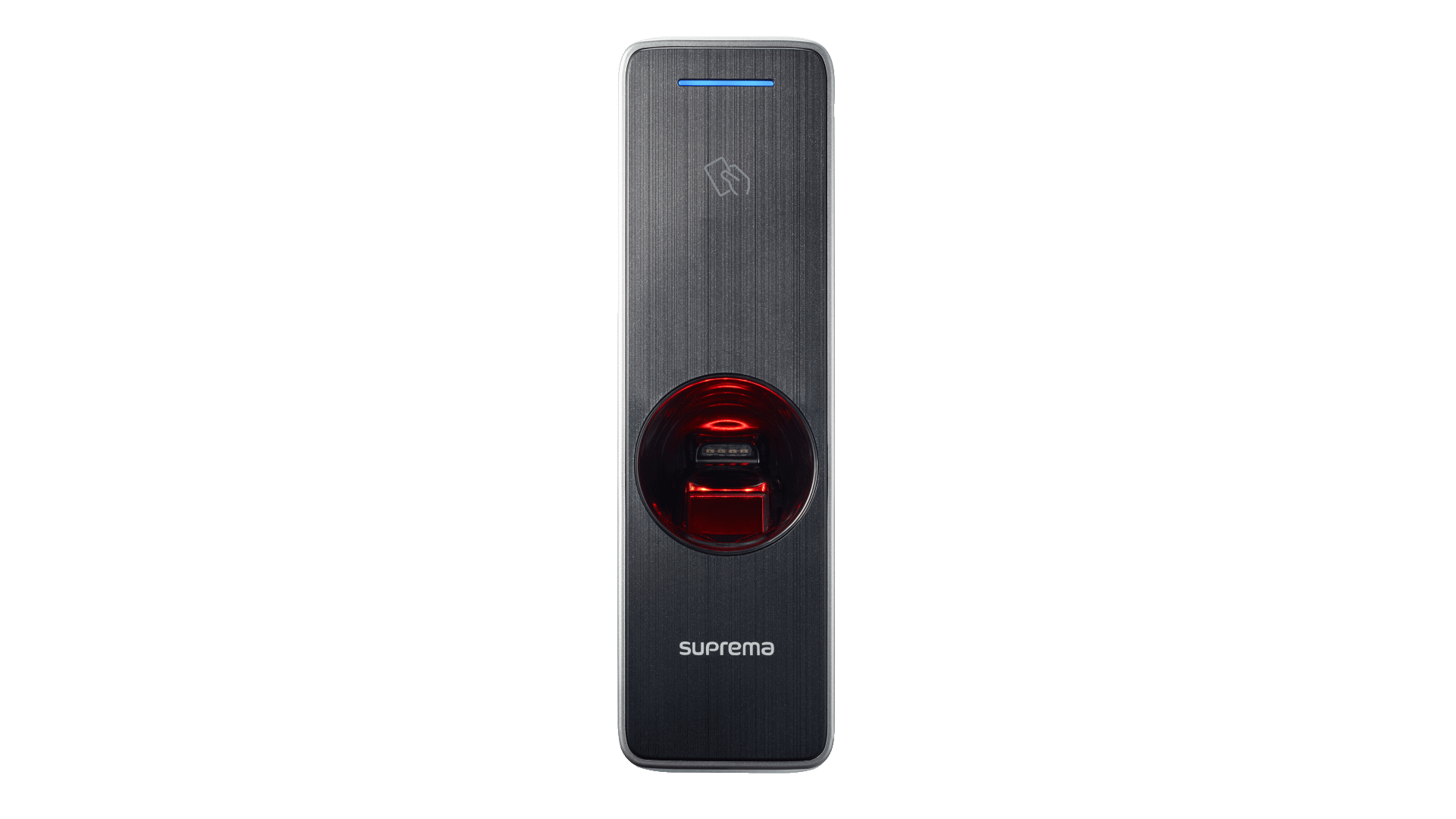

Suprema BioEntry W2
Outdoor IP Fingerprint Device
BEW2
The BioEntry W2 comes with a robust, vandal-resistant housing and is able to withstand a high level of impact. Coupled with IP67 ingress protection, the BioEntry W2 is a perfect solution for outdoor applications. Advanced Live Finger Detection (LFD) technology uses dual light source imaging for improved accuracy and security.
Features
- New advanced Live Finger Detection (LFD) technique
- High-precision OP5 optical sensor
- Max. 500k users/1 million text logs
- Large memory: 2GB Flash + 256 MB RAM
- LF(125kHz), HF(13.56MHz) dual-band
- Reads all card types that HID multiCLASS supports (EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC)
Specifications
| Ordering Code | BEW2-OHP | BEW2-OD |
| RF Option | 125kHz HID Prox | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, NFC |
| Biometric | Fingerprint | |
| Sensor Type | Optical Sensor (OP5) | |
| Template | SUPREMA / ISO 19794-2 / ANSI 378 | |
| Extractor / Matcher | MINEX certified and compliant | |
| LFD | Supported | |
| CPU | 1.2 GHz Quad Core | |
| Memory | 2GB Flash + 256MB RAM | |
| Max. User | 500,000 (1:1), 100,000(1:N) | |
| Max. Template | 1,000,000(1:1), 200,000(1:N), [1 f inger =2 templates] | |
| Max. Logs | 1,000,000 (text) | |
| LED | Multi-color | |
| Sound | Multi-tone buzzer | |
| Ethernet | 10/100 Mbps, auto MDI/MDI-X | |
| RS-485 | 1ch Host or Slave (Selectable), OSDP V2.1.6 | |
| Wiegand | 1ch Input or Output (Selectable) | |
| TTL | 2ch Input | |
| Relay | 1 Relay | |
| PoE | Supported (IEEE 802.3af compliant) | |
| Ingress Protection | IP67 | |
| Impact Protection | IK09 | |
| Tamper | Supported | |
| Power | Voltage: DC 12V Current: Max. 600 mA | |
| Operating Temmperature | -20°C ~ 50°C | |
| Operating Humidity | 0% ~ 80%, non-condensing | |
| Dimensions (W x H x D) | 50 x 172 x 43.5mm | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE | |
*DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry W2.
Important: These specifications are provided by a third-party and subject to change without notice. While ICT makes all efforts to ensure accuracy of information supplied, confirmation of specifications and the features listed is the responsibility of the installer or integrator.
