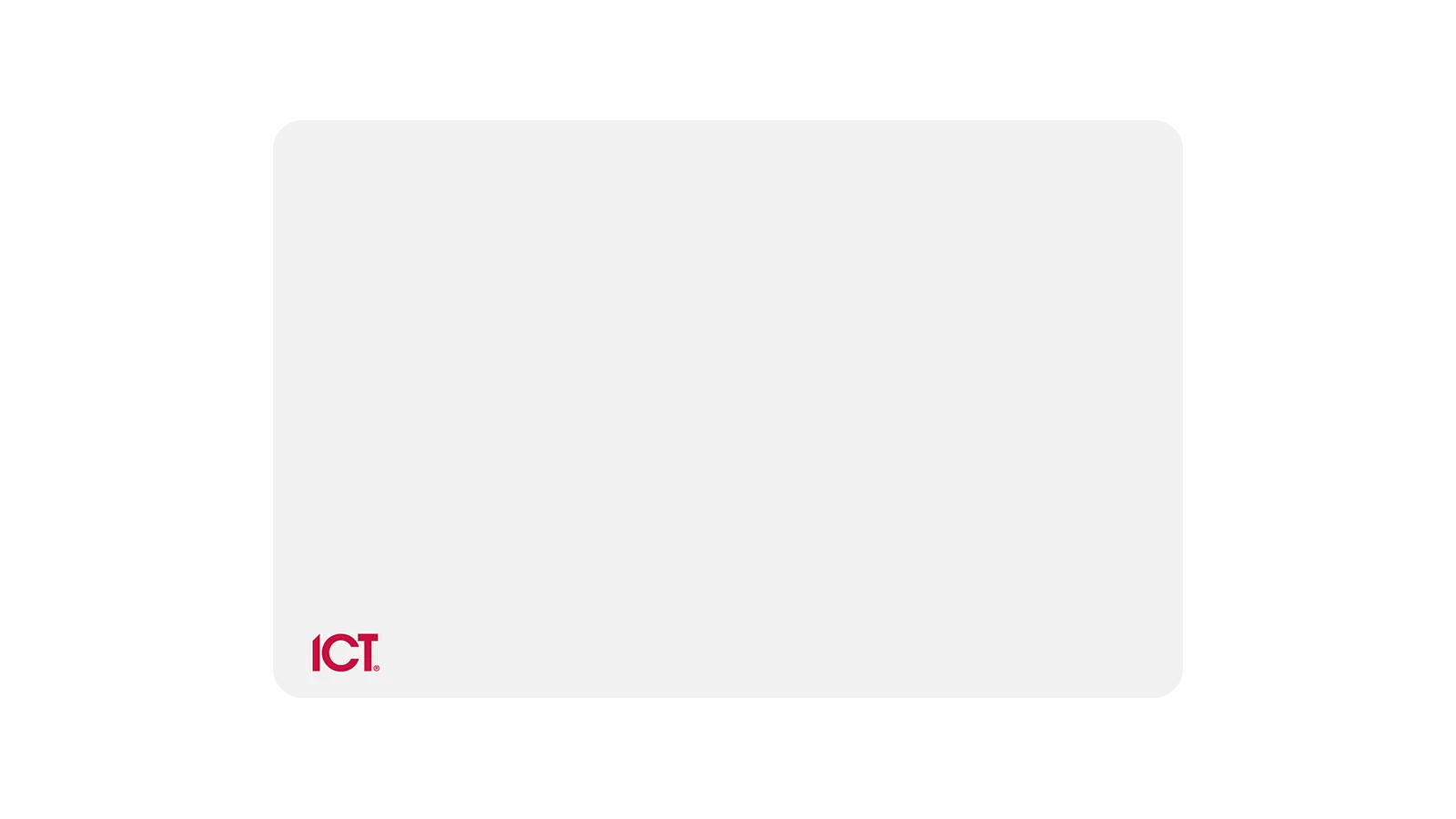

ICT ISO Graphic
Printable Card

PRX-ISO

The ISO Graphic Printable Card provides a complete multi-technology smart card RFID solution. Available with either 125kHz or 13.56MHz technology, or as a multi technology card that combines both capabilities, delivering maximum compatibility while providing a path forward to the latest technology. Generic Wiegand output provides flexibility and seamless integration with any access control solution.

  • Utilizes highly secure 13.56MHz MIFARE DESFire EV1 or EV2 smart card technology
  • Mutual authentication, AES 128, DES and triple-DES data encryption with unique 56-bit serial number
  • Improve security of existing 125kHz applications with dual technology transition cards
  • Open solution with read / write functionality
  • ISO standard card thickness enabling use with all direct image and thermal transfer printers
  • Range of options including magnetic stripe, external card numbering, custom artwork, and contact smart chip module
  • Laser engraved card identification

Features

ICT Secured MIFARE is ICT's implementation of the MIFARE standard. Credential data is protected with a diversified authentication key and encrypted with an AES 256 algorithm, effectively plugging the known security flaw in the MIFARE standard.

Other MIFARE formats are also available.

Designed for a diverse range of applications that demand the highest levels of security, MIFARE DESFire EV2 is based on open global standards for both RF interface and cryptographic methods.

The highly secure micro controller-based solution is certified with Common Criteria EAL5+. It features an on-chip backup management system and mutual three pass authentication, allowing it to hold up to 28 applications and 32 files per application.

MIFARE DESFire EV1 256B addresses the needs of environments requiring only a limited set of applications but high security needs, offering the same fast and highly secure data transmission based on open global standards for both air interface and implemented cryptographic methods.

The size of each file is defined at the moment of its creation and provides an automatic anti-tear mechanism for all file types, guaranteeing transaction-oriented data integrity.

The highly secure micro controller-based solution is certified with Common Criteria EAL4+. It features an on-chip backup management system and mutual three pass authentication.

125kHz technology offers a lower level of security but a good read range and short read time due to the lower power requirement and the small amount of data being transmitted. This allows users to simply present, swipe or wave their card in the general direction of the reader to achieve a successful read.

The thin design allows the card to be carried with credit cards in a wallet or purse. Use with a badge holder and strap clip or lanyard for an attractive photo ID badge.

Migration from legacy and less secure low frequency 125kHz technology can be easily achieved using dual technology DESFire cards that incorporate both high and low frequency card inlays. This allows organizations to transition to smart readers at their own pace.

Support for a number of low frequency products is available.

Print photo ID directly to the card with a direct image or thermal transfer printer.

The PVC card surface is optimized for dye sublimation printing, allowing you to customize cards with your own text or graphics artwork.

A range of ordering options for true flexibility, including:

  • Custom artwork (text or graphics)
  • External card numbering (laser engraving)
  • Magnetic stripe
  • Contact smart chip module

ISO cards are strong, flexible and resistant to damage. A passive, no battery design ensures a long life with an infinite number of reads.

Specifications

MIFARE DESFire Cards
   MIFARE
DESFire EV2
 MIFARE
DESFire EV2 / 125kHz
 MIFARE
DESFire EV1
MIFARE
DESFire / 125kHz
Ordering Code PRX-ISO-DF-2K
PRX-ISO-DF-4K
PRX-ISO-DF-8K
PRX-ISO-DF-EV2-LF PRX-ISO-DF-EV1-LT PRX-ISO-DF-LF
Technology
MIFARE DESFire
MIFARE
125kHz
Operating Frequency
13.56MHz
125kHz
EEPROM Memory
Memory 2KB / 4KB / 8KB 2KB 256B 2KB
Number of Applications* Unlimited Unlimited 28 28
Files per Application* 32 32 32 32
Number of Sectors N/A N/A N/A N/A
Write Endurance 500,000 500,000 500,000 500,000
* The number of applications and files within the applications is dependent on the device memory available.
Communications
RF Interface ISO/IEC 14443A-4 ISO/IEC 14443A-4 ISO/IEC 14443A-4 ISO/IEC 14443A-4
Baud Rate 848 kbit/s 848 kbit/s 848 kbit/s 848 kbit/s
Typical Maximum Read Range** 15mm (0.6") 15mm (0.6") 15mm (0.6") 40mm (1.57")
** Read range is dependent upon reader technology and installation conditions and may vary accordingly
Common Criteria Certification
Compliance EAL5+ EAL5+ EAL4+ EAL4+
Features
Card Construction Thin, flexible white high gloss polyvinyl chloride (PVC) laminate
Card Marking Laser engraving (optional)
Programming Factory or field
Dimensions
Dimensions 85.7 x 54.0 x 0.76 mm (3.375 x 2.125 x 0.3")
Net Weight 5.5g (0.2oz)
Gross Weight 1200g (42.3oz) Qty: 200



MIFARE and 125kHz Cards
   MIFARE  MIFARE
 / 125kHz
 125kHz
Ordering Code PRX-ISO-MF
PRX-ISO-MF4K
PRX-ISO-MF-HID
PRX-ISO-MF4K-HID
PRX-ISO-LF
Technology
MIFARE DESFire
MIFARE
125kHz
Operating Frequency
13.56MHz
125kHz
EEPROM Memory
Memory 1KB / 4KB 1KB / 4KB 363 Bits
Number of Applications* N/A N/A N/A
Files per Application* N/A N/A N/A
Number of Sectors 16 (1KB) / 40 (4KB) 16 (1KB) / 40 (4KB) N/A
Write Endurance 200,000 200,000 100,000
* The number of applications and files within the applications is dependent on the device memory available.
Communications
RF Interface ISO/IEC 14443A-3 ISO/IEC 14443A-3 ISO/IEC 11784/11785
Baud Rate 106 kbit/s 106 kbit/s 106 kbit/s
Typical Maximum Read Range** 60mm (2.36") 60mm (2.36") 40mm (1.57")
** Read range is dependent upon reader technology and installation conditions and may vary accordingly
Common Criteria Certification
Compliance
Features
Card Construction Thin, flexible white high gloss polyvinyl chloride (PVC) laminate
Card Marking Laser engraving (optional)
Programming Factory or field
Dimensions
Dimensions 85.7 x 54.0 x 0.76 mm (3.375 x 2.125 x 0.3")
Net Weight 5.5g (0.2oz)
Gross Weight 1200g (42.3oz) Qty: 200
