EliteSuite Touch Sense
LCD Keypad

ELT-KLCS

The EliteSuite Touch Sense LCD Keypad provides a sleek, user friendly human interface to the EliteSuite System, an advanced technology security system specifically designed to enhance the functionality of condominium and apartment security with flexible local monitoring and offsite communication.

8 local user codes
Stay, force, and instant arming
Activation of 3 reportable panic events (panic, medical, and fire)
Individual reportable duress code for each LCD Keypad
2 inputs (4 using duplex mode) that can be used to perform system alarm and automation functions, expandable using slave keypads to 16 inputs
1 multi-function output
Fire zone functions
Available in black or white

Features

Apartment Condominium Control

Operating in the Condominium Control mode the keypad provides a complete standalone 4 input, 8 user local alarm system:

Operates autonomously when communication fails, without the need for a Protege EliteSuite Integrated System Controller
Locally program siren, entry and exit delay timers and configure the operation of up to 8 users with arming and disarming options
4 inputs (duplex mode) can be used for delay, instant, follow, fire, fire delay and 24 hour operation
Conforms to the UL/ULC fire control specifications
Configuration and addressing of the keypad is achieved by a simple easy to follow configuration menu available during initialization
Communicate with up to 4 slave keypads for expansion to 18 inputs and operation of multi-floor penthouse apartments

Specifications

Ordering Code

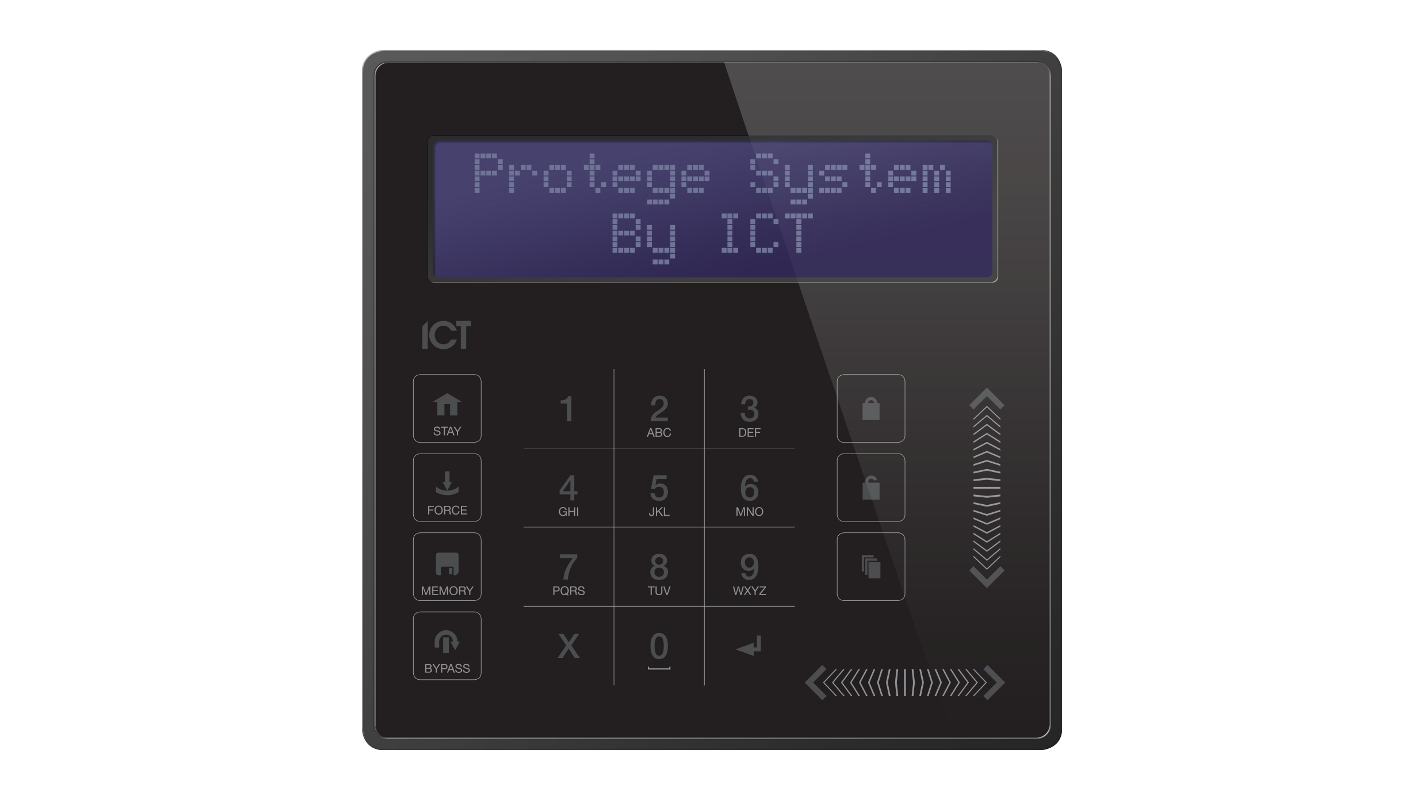

ELT-KLCS-B	EliteSuite Touch Sense LCD Keypad - Black

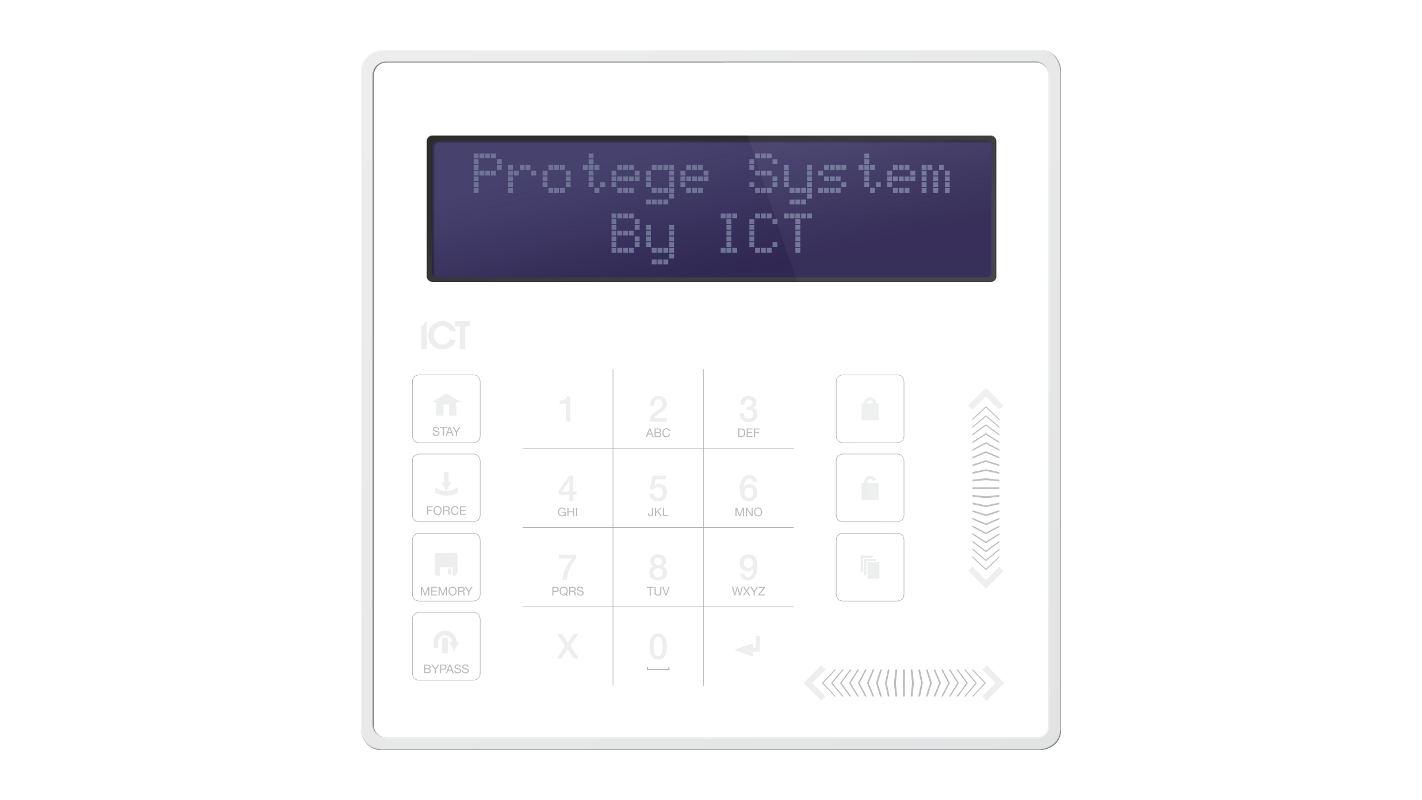

ELT-KLCS-W	EliteSuite Touch Sense LCD Keypad - White
Power Supply
Operating Voltage	11VDC to 14VDC
Operating Current	60mA (95mA Max)
User Interface
User Interface Display	Energy smart backlit LCD 16 x 2 alphanumeric display with enhanced viewing angle
User Input	Combined 23 key capacitive touch keypad with 3 system status LEDs
Inputs
Inputs	2 standard or 4 using input duplex mode
Outputs
Outputs	1 open collector (50mA Max) output. Programmable for all output functions.
Dimensions
Dimensions (H x W x D)	125 x 125 x 20mm (4.92 x 4.92 x 0.79”)
Weight	318g (11.21oz)
Operating Conditions
Operating Temperature	0˚ to 50˚C (32˚ to 122˚F)
Storage Temperature	-10°- 85°C (14° - 185°F)
Humidity	0%-93% non condensing, indoor use only (relative humidity)

Downloads

User Documentation

EliteSuite Touch Sense LCD Keypad Installation Manual

EliteSuite Touch Sense LCD Keypad User Manual

Firmware

ELT-KLCS Firmware

Supporting Material

Protege EliteSuite Touch Sense LCD Keypad Datasheet

Certifications & Warranties

Standard Product Warranty

Regulatory Notices

RCM (Australian Communications and Media Authority (ACMA))

This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.

CE – Compliance with European Union (EU)

Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.

This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.

Industry Canada

ICES-003

his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

Federal Communications Commission (FCC)

FCC Rules and Regulations CFR 47, Part 15, Class A.

This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
